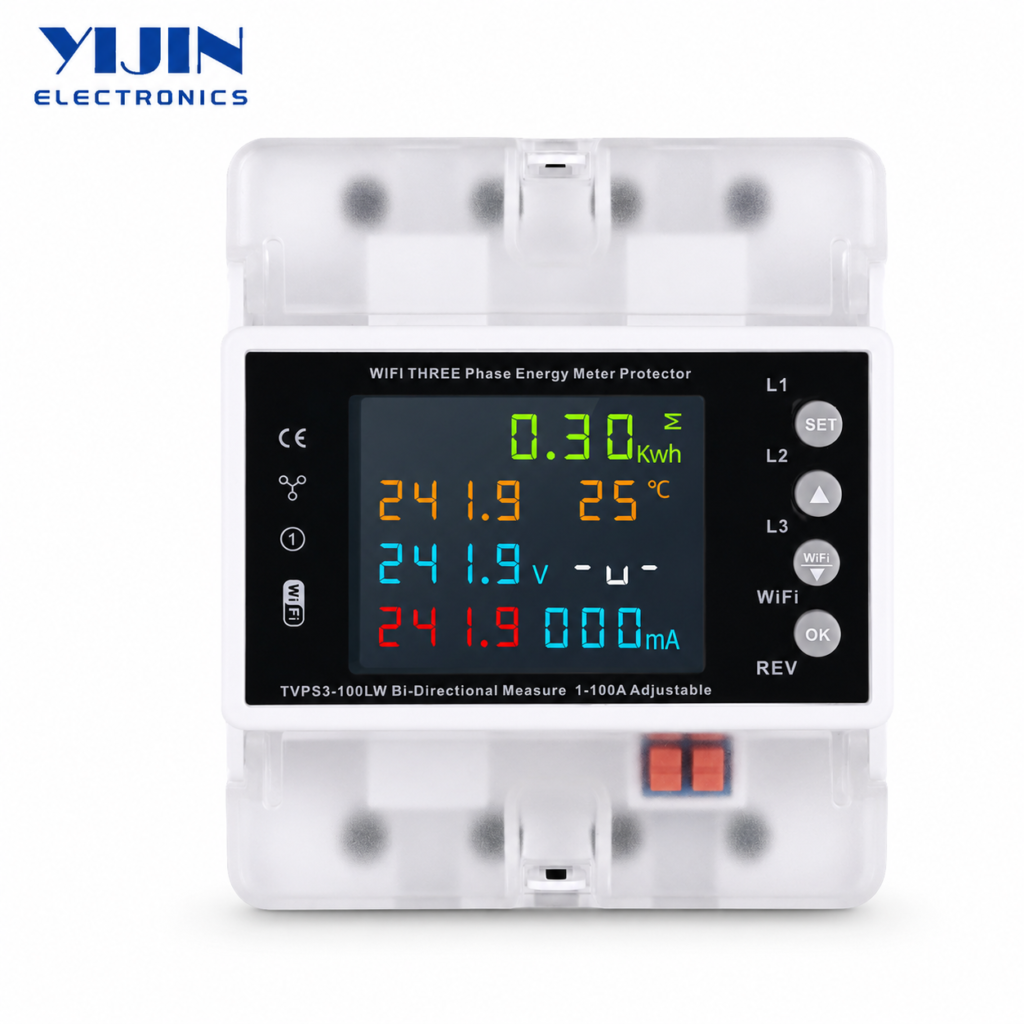

YIJIN Smart Energy Meter 1-100A Mini WiFi Tuya Air Circuit Breaker
WiFi three phase energy meter protector, 1-100A adjustable bi-directional measurement with kWh metering, per-phase voltage and current monitoring, temperature display and leakage protection.
Product Highlights
Multi Parameter Display:The Color Screen Presents Energy Usage Voltage Current Leakage Value And Temperature Readings For Clear Status Checking
Features
Over Voltage Protection
Under Voltage Protection
Over Current Protection
Under Current Protection
Delay Protection
Timer Switch
Bidirectional Energy Monitor
Voltage Imbalance Protection (Can only be set in the app)
Current Imbalance Protection (Can only be set in the app)
Shortage Phase Protection (Can only be set in the app)
Phase Sequence Protection (Can only be set in the app)
High Temperature Protection (Can only be set in the app)
Current Leakage Protection (This function must be used with an external or built-in current transformer)
Each parameter can be set with action threshold and On/Off.
Product Parameters
| Rated Supply Voltage | AC380V | Operation Voltage Range | AC80V-400V (Single Phase) |
| Rated Frequency | 50/60Hz | Rated Current | 1-100A |
| Power Display Range | 0-99999.9 kWh | Operating Temperature | -30℃ to 70℃ |
| Protection Trip Action Time | <0.5s | ||
| Over Voltage (>U) | 120-300V | Under Voltage (<U) | 80-210V |
| Current Leakage | 10-99mA / OFF | Protect Times | 1-30 times / off |
| Reset / Start Delay | 0s-9999s | ||
