Beiyuan BB2A-63, BB2S-63 miniature circuit breaker accessories

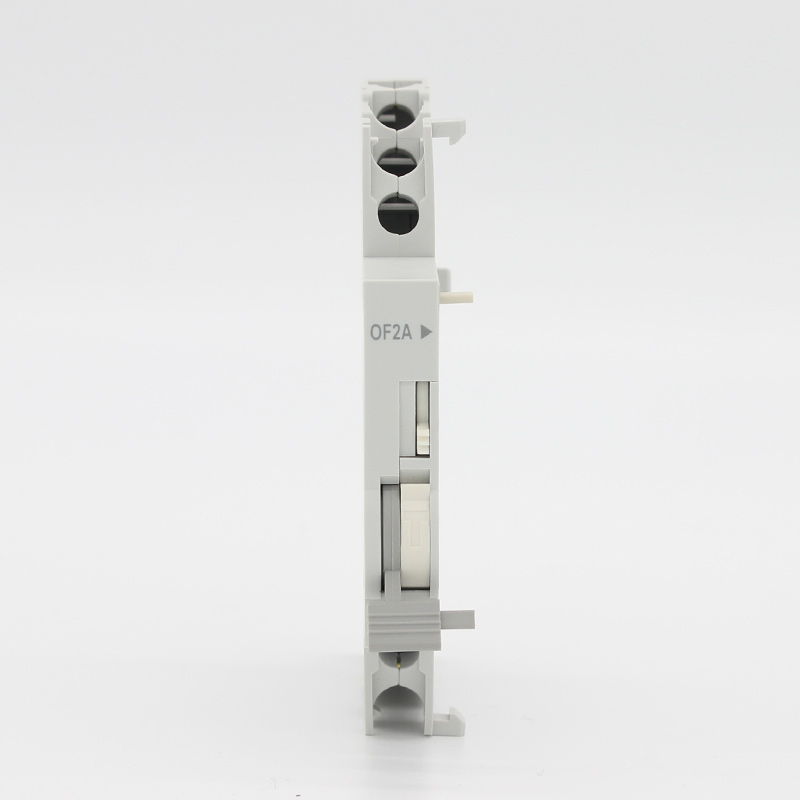

OF2A auxiliary
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the Beiyuan BB2A series circuit breakers, which achieve remote tripping control and indication of the on/off status of the line
When the auxiliary contact is opened, terminals 11 and 12 are connected; When the auxiliary contact is closed, terminals 11 and 14 are connected
Scope of use
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the Beiyuan BB2A series circuit breakers, which achieve remote tripping control and indication of the on/off status of the line
Main technical parameters
| product name | model | Rated working voltage Un | Voltage value |
| assistant | OF(OF2A) | 115/230/400V | / |
product overview
OF2A auxiliary contact
Action characteristics:
When the auxiliary contact is opened, terminals 11 and 12 are connected; When the auxiliary contact is closed, terminals 11 and 14 are connected
| Rated frequency | protection grade | rated insulation voltage | Product width | Ambient Temperature | storage temperature |
| 50/60Hz | IP20 | 500V | 9mm | -35℃~+70℃ | -35℃~+70℃ |
