L7/E6/ HU18 miniature circuit breaker accessories

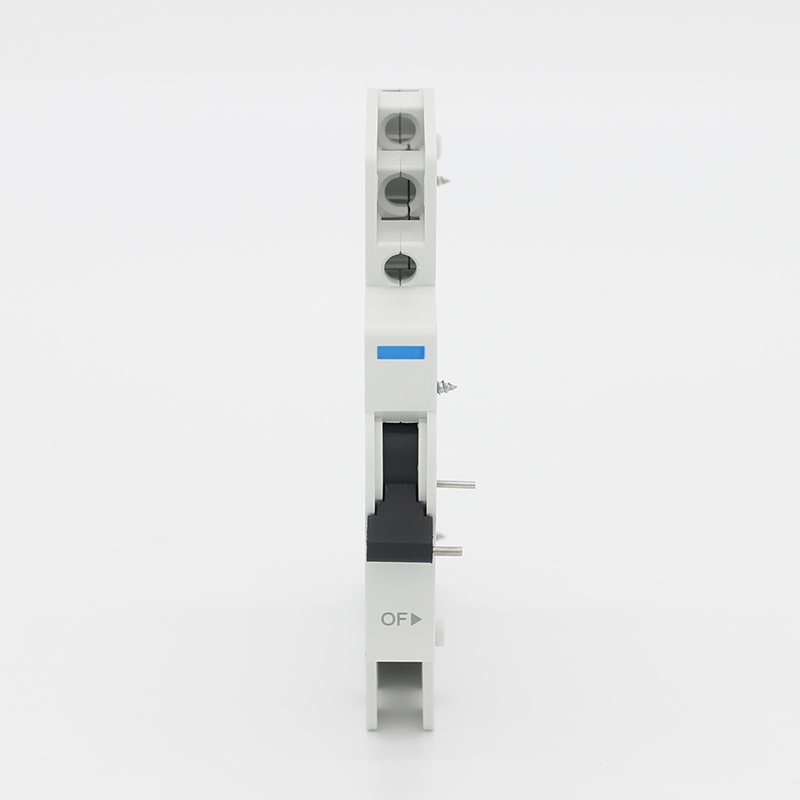

OF Assistance
This series of circuit breaker accessories is specially designed by our company for L7 E6、 The auxiliary functional components of the 18 series circuit breaker are designed to achieve remote tripping control and indication of the opening and closing status of the circuit
When the auxiliary contact is opened, terminals 11 and 12 are connected; When the auxiliary contact is closed, terminals 11 and 14 are connected.
Scope of use
This series of circuit breaker accessories is specially designed by our company for L7 E6、 The auxiliary functional components of the 18 series circuit breaker are designed to achieve remote tripping control and indication of the opening and closing status of the circuit
Main technical parameters
| product name | model | Rated working voltage Un | Voltage value |
| assistant | OF | 115/230/400V | / |
product overview
OF auxiliary contact
Action characteristics:
When the auxiliary contact is opened, terminals 11 and 12 are connected; When the auxiliary contact is closed, terminals 11 and 14 are connected.
| Rated frequency | protection grade | rated insulation voltage | Product width | Ambient Temperature | storage temperature |
| 50/60Hz | IP20 | 500V | 9mm | -35℃~+70℃ | -35℃~+70℃ |
