Beiyuan BB2A-63, BB2S-63 miniature circuit breaker accessories

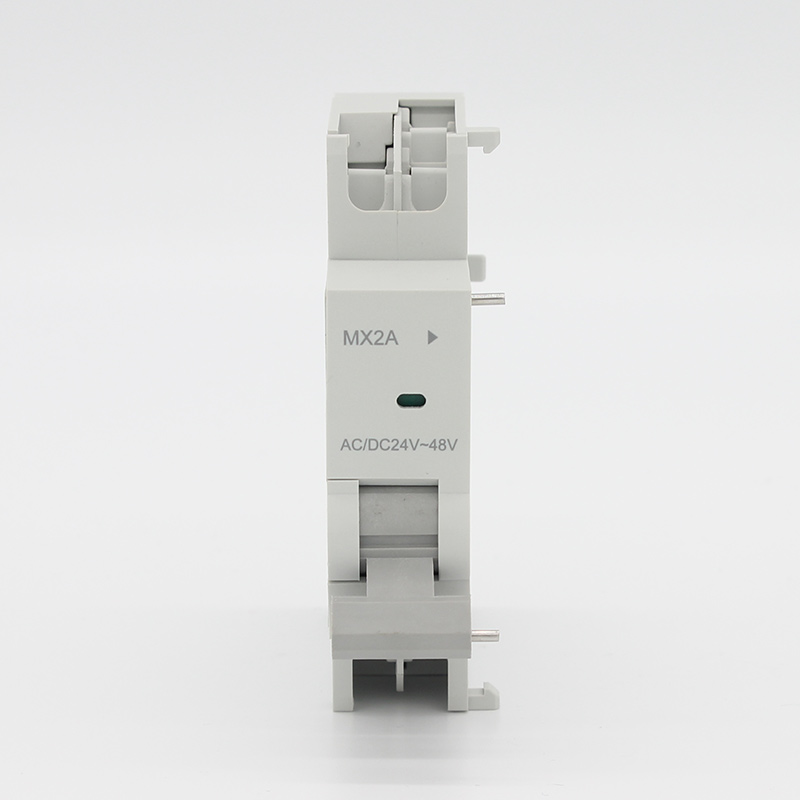

MX2A shunt excitation
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the Beiyuan BB2A series circuit breakers, which achieve remote tripping control and indication of the on/off status of the line
At 70%~110% of the rated control power supply voltage, the release should reliably operate to disconnect the circuit breaker.
Scope of use
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the Beiyuan BB2A series circuit breakers, which achieve remote tripping control and indication of the on/off status of the line
Main technical parameters
|
product name |
model |
Rated working voltage Un |
Voltage value |
|
Single point excitation |
MX |
230V |
DC 24V |
product overview
MX2A shunt release
Action characteristics:
At 70%~110% of the rated control power supply voltage, the release should reliably operate to disconnect the circuit breaker.
|
Rated frequency |
protection grade |
rated insulation voltage |
Product width |
Ambient Temperature |
storage temperature |
|
50/60Hz |
IP20 |
500V |
18mm |
-35℃~+70℃ |
-35℃~+70℃ |
