L7/E6/ HU18 miniature circuit breaker accessories

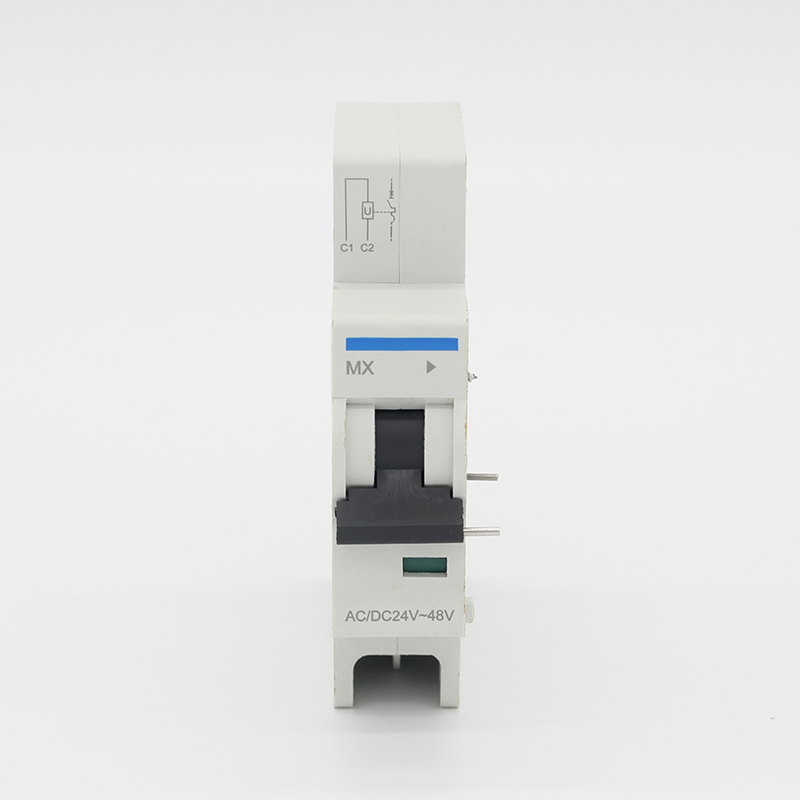

MX Split Excitation
This series of circuit breaker accessories is specially designed by our company for L7 E6、 The auxiliary functional components of the 18 series circuit breaker are designed to achieve remote tripping control and indication of the opening and closing status of the circuit
At 70%~110% of the rated control power supply voltage, the release should reliably operate to disconnect the circuit breaker.
Scope of use
This series of circuit breaker accessories is specially designed by our company for L7 E6、 The auxiliary functional components of the 18 series circuit breaker are designed to achieve remote tripping control and indication of the opening and closing status of the circuit
Main technical parameters
|
product name |
model |
Rated working voltage Un |
Voltage value |
|
Single point excitation |
MX |
230V |
DC 24V |
product overview
MX shunt release
Action characteristics:
At 70%~110% of the rated control power supply voltage, the release should reliably operate to disconnect the circuit breaker.
|
Rated frequency |
protection grade |
rated insulation voltage |
Product width |
Ambient Temperature |
storage temperature |
|
50/60Hz |
IP20 |
500V |
18mm |
-35℃~+70℃ |
-35℃~+70℃ |
