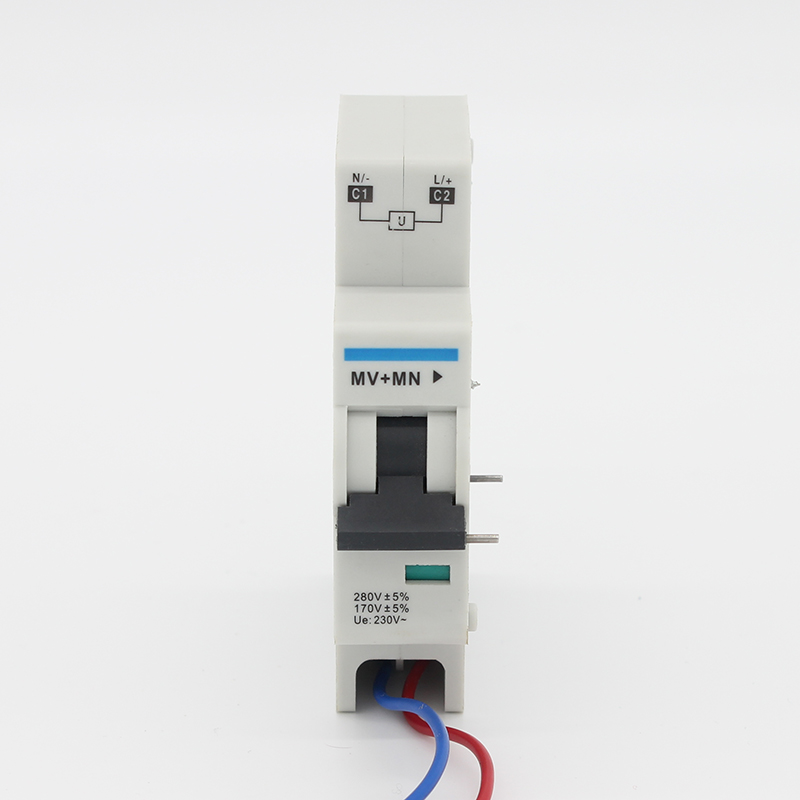

MV+MN overvoltage and undervoltage

Scope of use

This series of circuit breaker accessories is specially designed by our company for L7 E6、 The auxiliary functional components of the 18 series circuit breaker are designed to achieve remote tripping control and indication of the opening and closing status of the circuit

Main technical parameters

product overview

MV+MN overvoltage and undervoltage release device

Action characteristics:

When the main circuit voltage is (85%~110%) Ue, the release should be able to maintain long-term operation of the circuit breaker. When the voltage of the main circuit rises to (280V ± 5%) or falls to (170V ± 5%), the release combined with the circuit breaker should act to drive the circuit breaker to open. Undervoltage protection interval: (35%~70%)Ue
