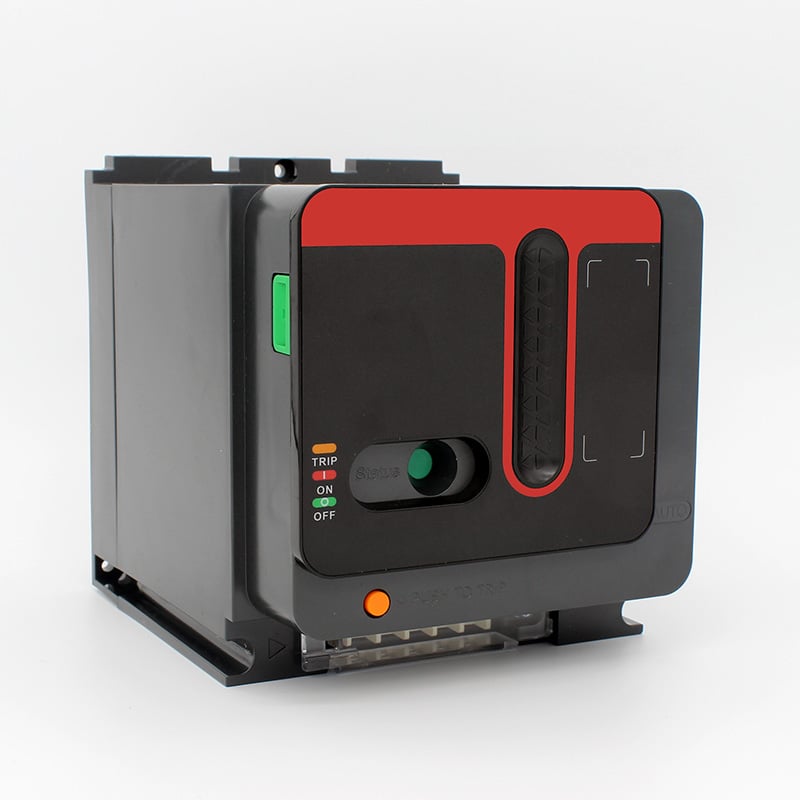

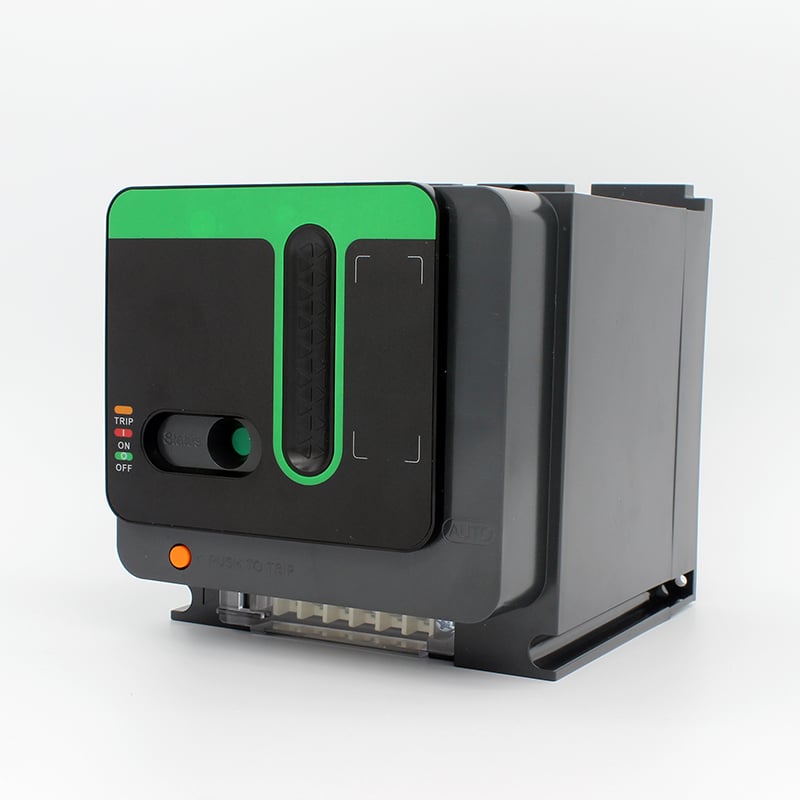

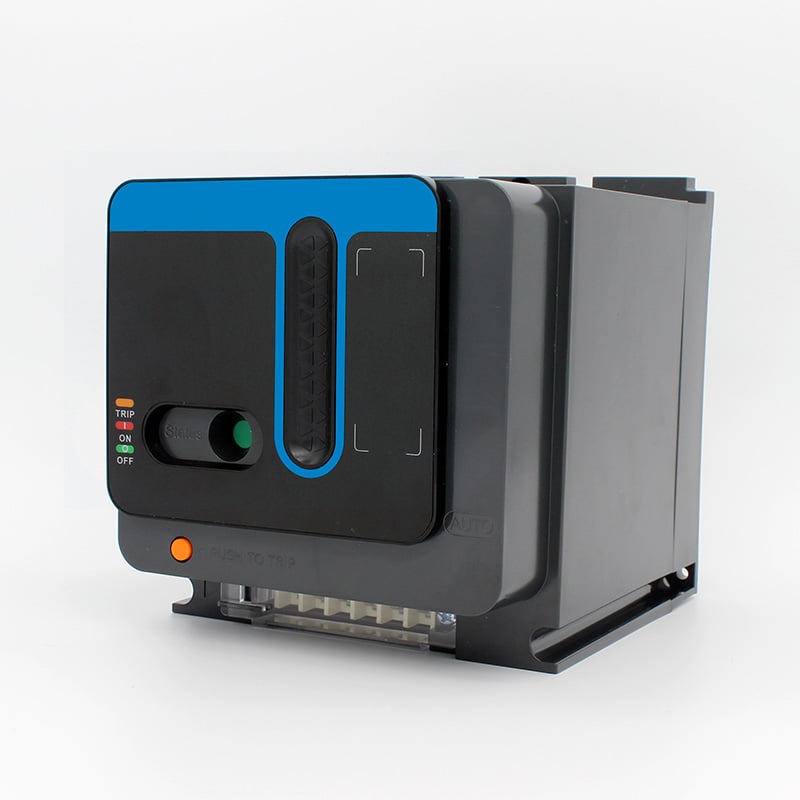

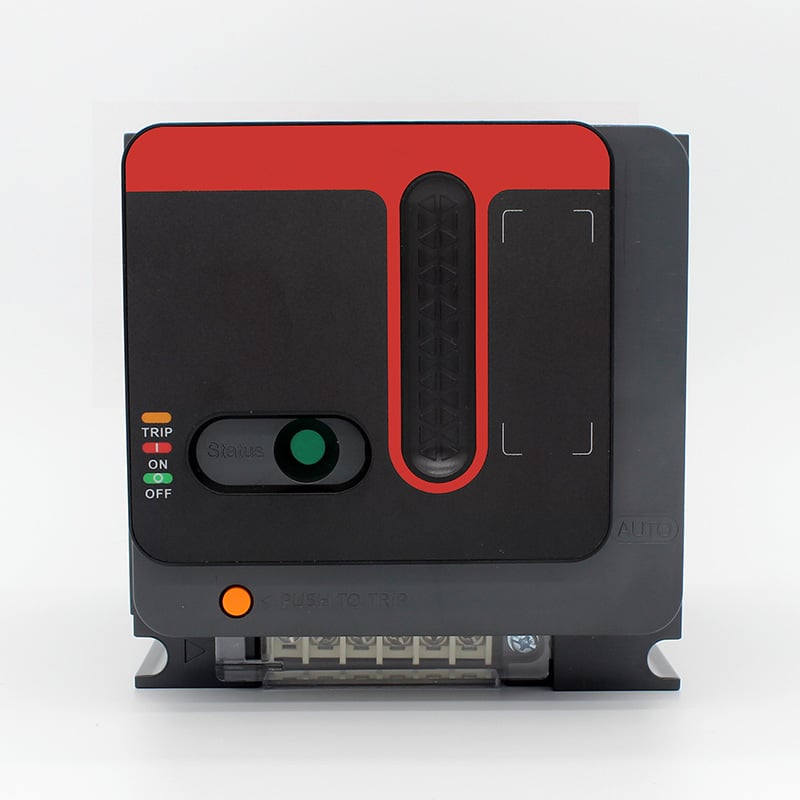

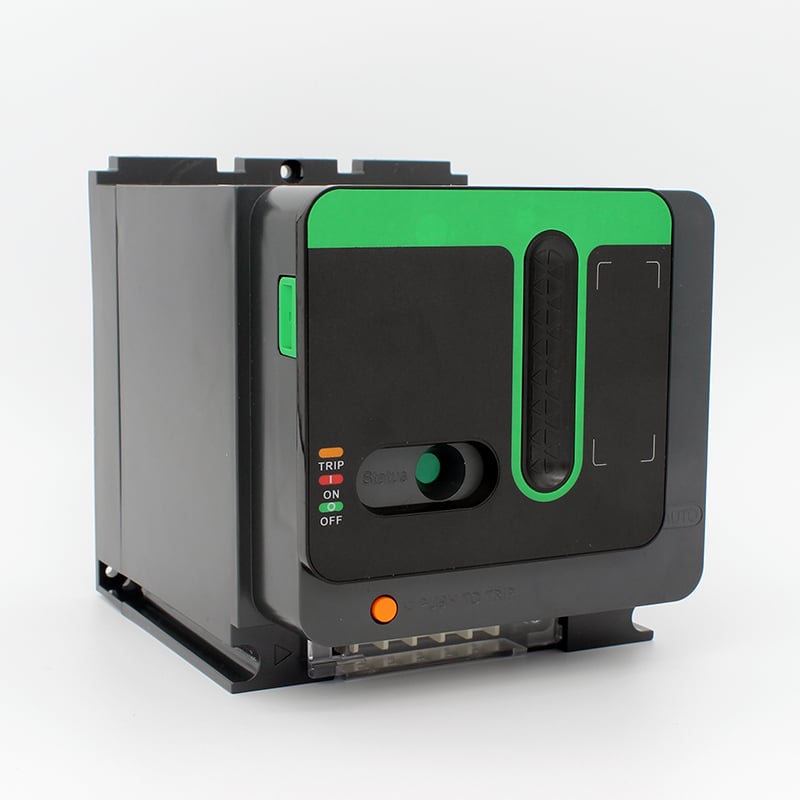

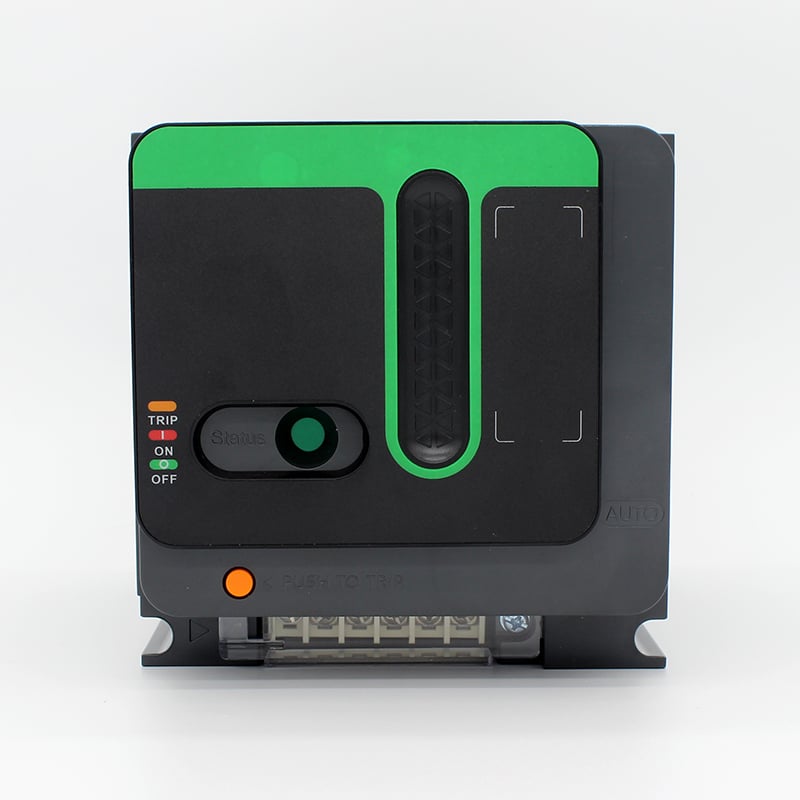

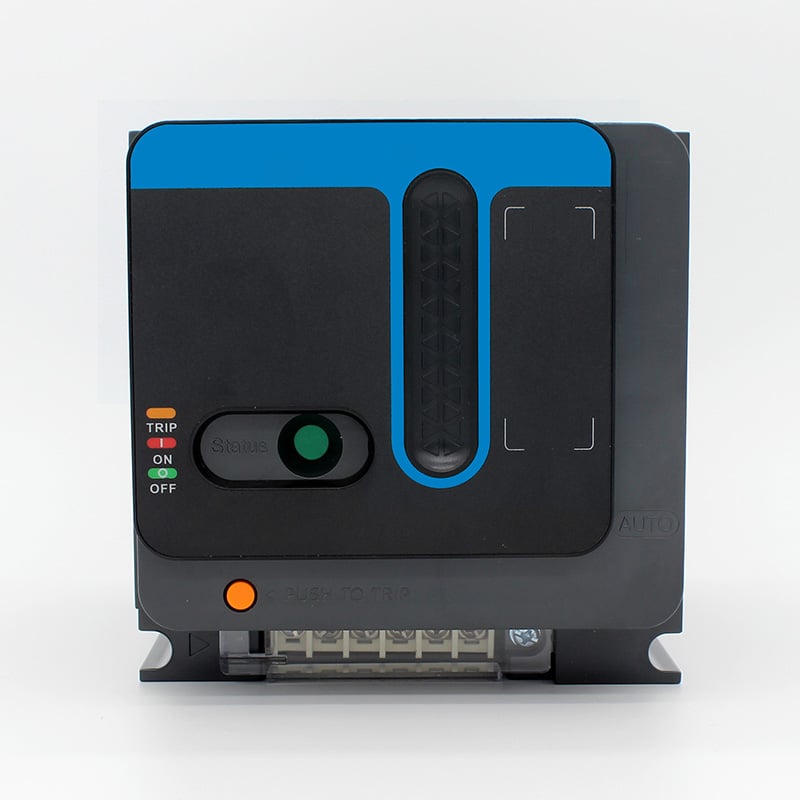

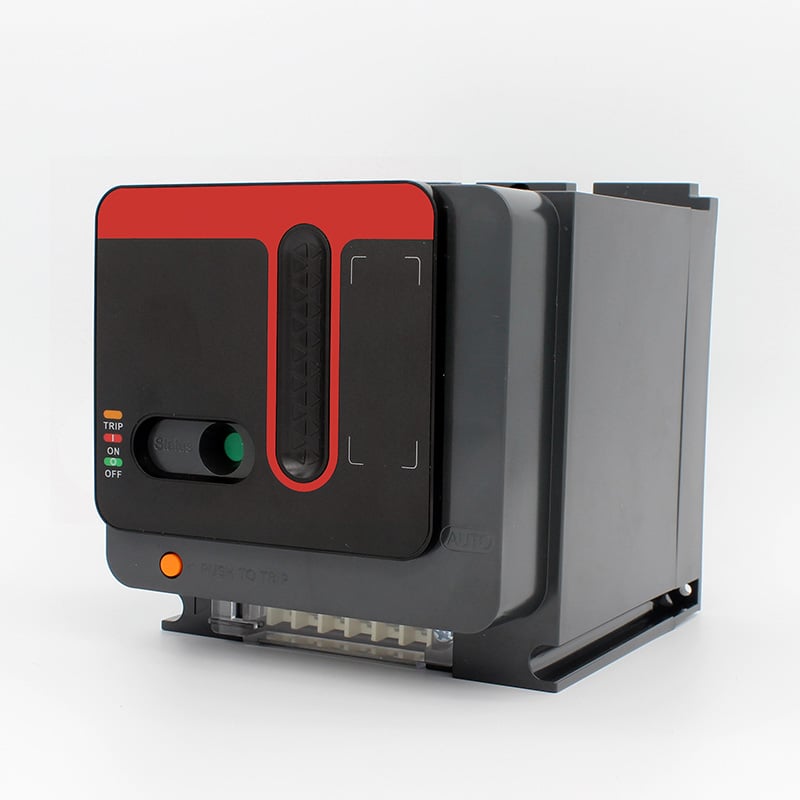

MT type electric operating mechanism
Scope applicationRelays are automatic switching components with isolation functions, widely used in remote control, telemetry, communication, automatic control, mechatronics, and power electronic equipment. They are one of the most important control components.Relays generally have sensing mechanisms (input parts) that can reflect certain input variables such as current, voltage, power, impedance, frequency, temperature, pressure, speed, light,…
2. Wide voltage input: AC/DC100-230V
3. Strong universality: suitable for NSX, CVS, EZS circuit breakers
Product Features
1. Brand new exterior design and user experience
2. Wide voltage input: AC/DC100-230V
3. Strong universality: suitable for NSX, CVS, EZS circuit breakers
Basic parameter characteristics of universal electric operating mechanism
|
model |
MT100/160/250 |
MT400/630 |
|
work environment |
Operating temperature -5 ℃~+70 ℃, altitude 2000m without capacity reduction |
|
|
Voltage level |
DC24V |
|
|
AC/DC 110-230V |
||
|
AC400V |
||
|
protection grade |
twenty |
|
|
Opening time |
350ms |
500ms |
|
close time |
700ms |
1000ms |
|
lifetime |
25000 times |
20000 times |
|
External dimensions |
90 x 88 x 99mm |
130x140x132mm |
warn
There may be a risk of electric shock and arc burns
This device is only suitable for TT/TN grounding systems and not for grounding systems.
B must install this equipment in the open state of the circuit breaker, ensuring that the circuit breaker handle is inserted into the handle frame of this equipment.

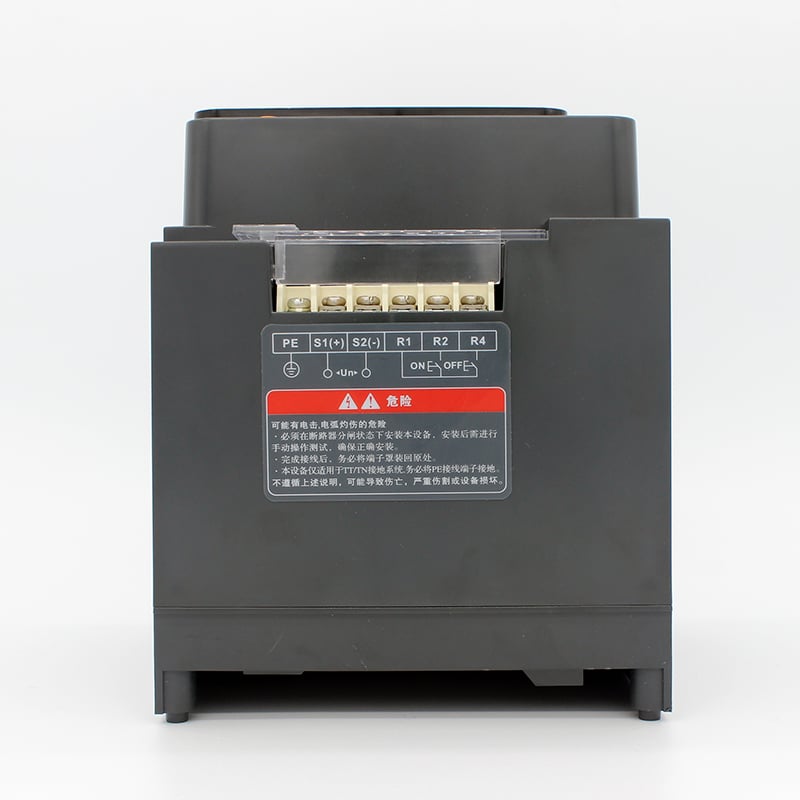

When connecting wires, U-shaped or O-shaped terminal blocks should be used,
Do not connect the device power supply to the R1/R2/R4/PE terminals
After completing the wiring, do not discard the terminal cover, be sure to reinstall it in its original position.
When the rated voltage of this device is DC24V, dielectric testing is prohibited.
G It is prohibited to enable remote closing and opening commands simultaneously.
Prohibit electric no-load operation without a circuit breaker.
When operating manually, it should be rotated 180 ° clockwise and counterclockwise rotation is prohibited.
Not following the above instructions may result in personal injury, serious injury, or equipment damage.
