Timer Switch

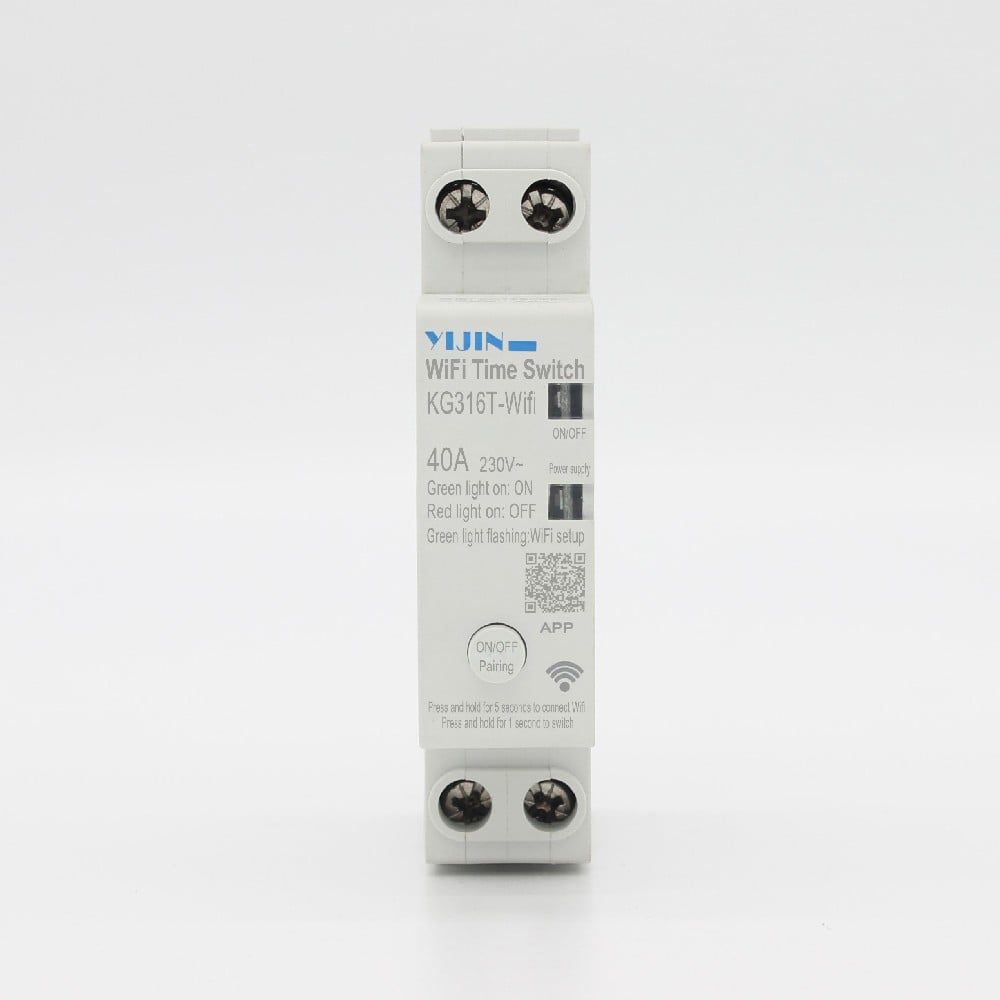

KG316T WiFi time control switch
Functional purposeThis product can automatically turn on and off the power of various electrical devices according to the time set by the user. The scope of product control usage includes electrical and household appliances such as street lights, neon lights, advertising sign lights, production equipment, broadcasting and television equipment that require timed opening and closing.Users…

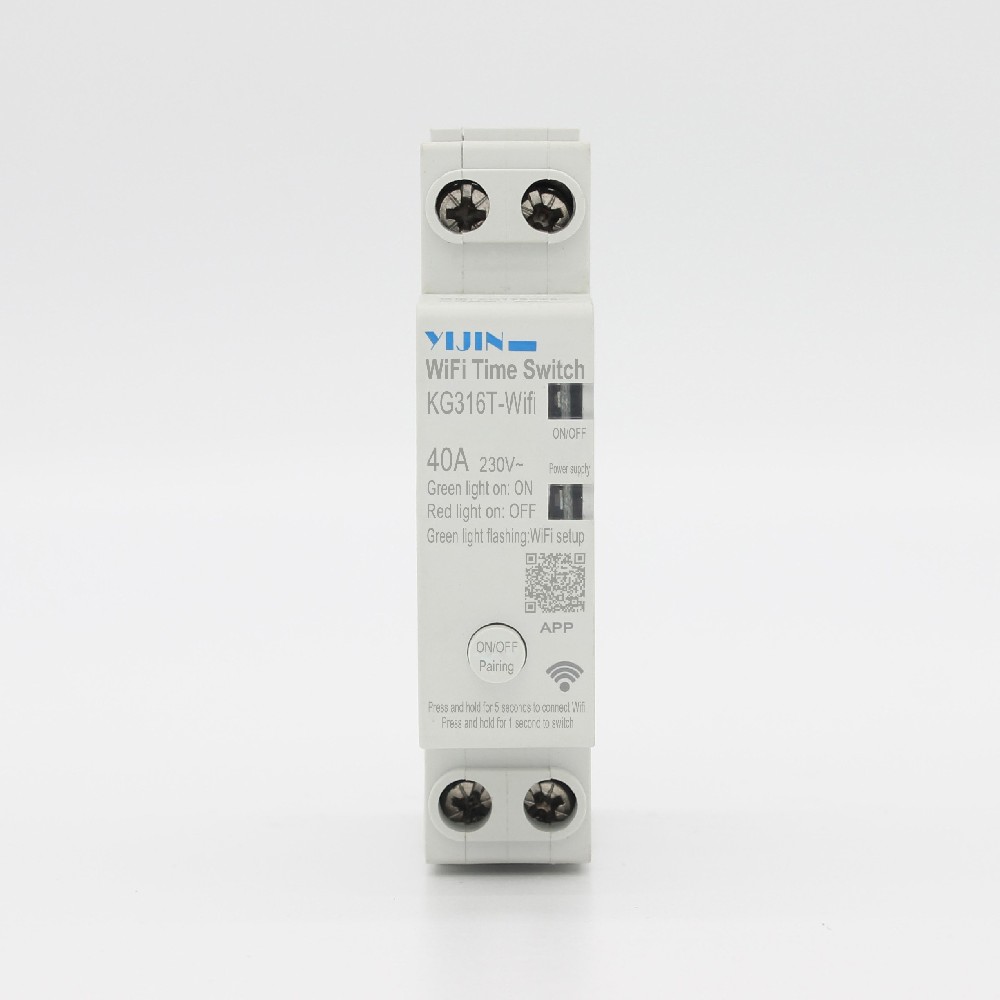

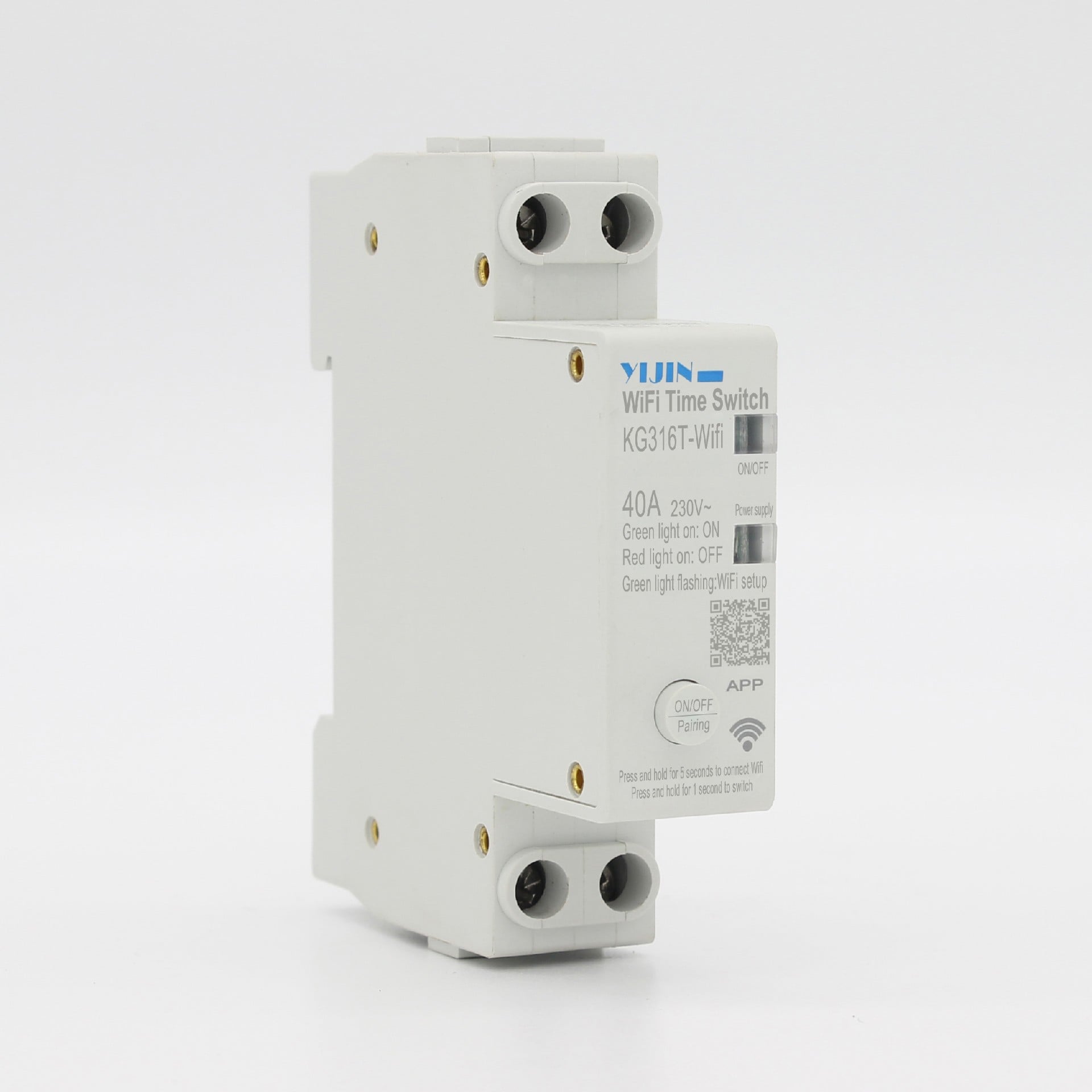

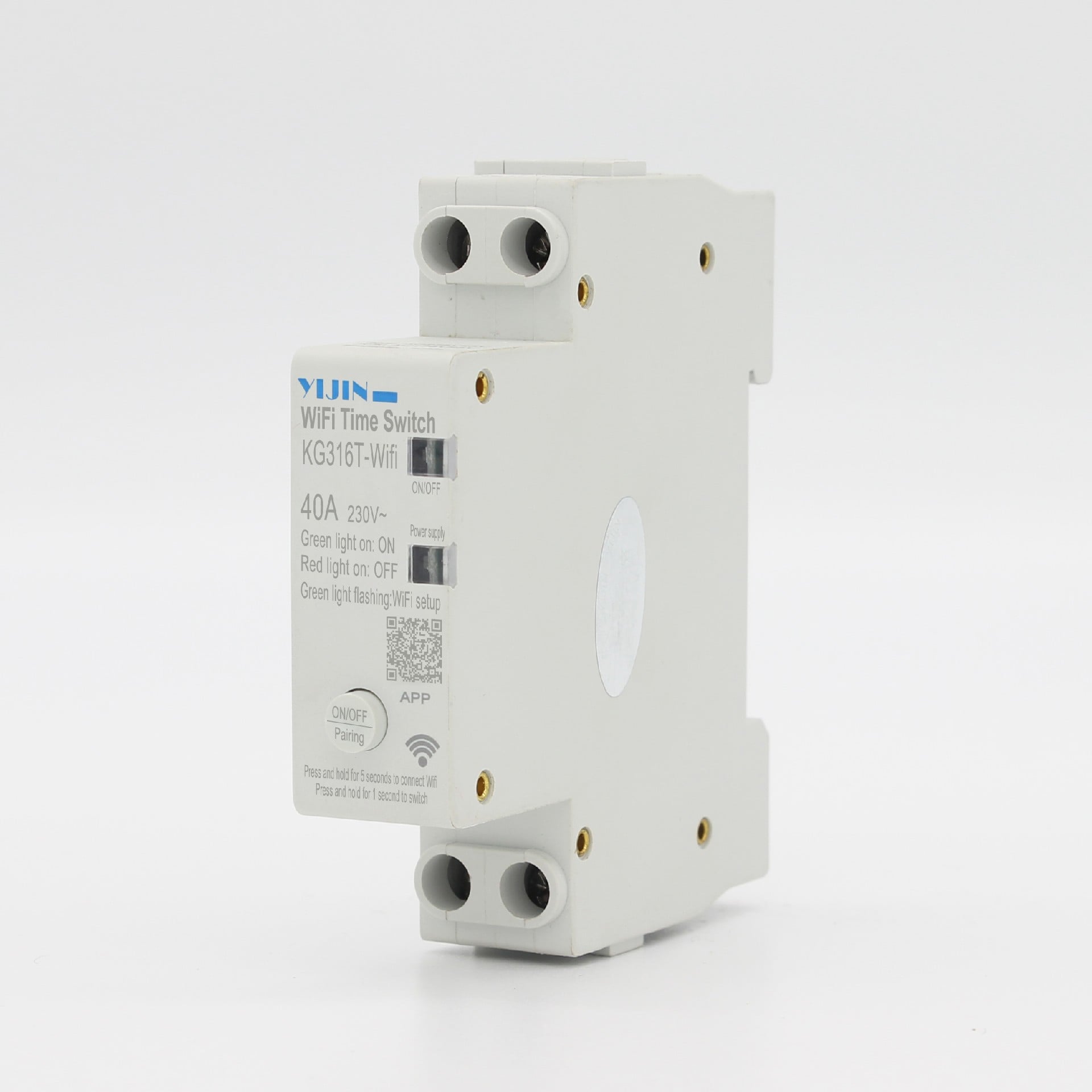

KG316T WiFi time control switch
KG316T Wifi time control switch is suitable for use in control circuits with rated control power supply voltage of 110V~240V and current of 40A. It is used for timed on/off delay overvoltage and control, and can also be used as a time control element to turn on or off circuit breakers at predetermined times.
Scope application
KG316T Wifi time control switch is suitable for use in control circuits with rated control power supply voltage of 110V~240V and current of 40A. It is used for timed on/off delay overvoltage and control, and can also be used as a time control element to turn on or off circuit breakers at predetermined times.

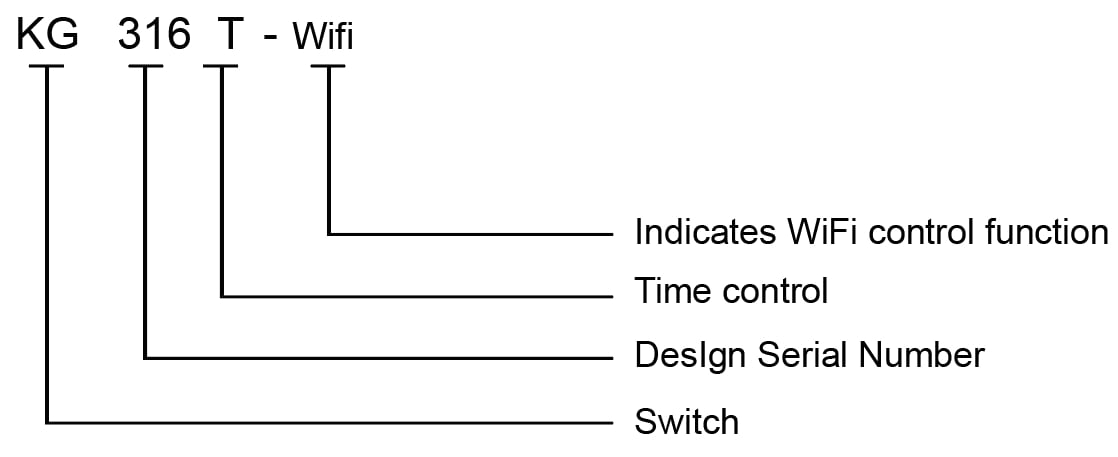

Model Meaning
Main parameters and technical performance
| Technical Parameter | KG316T-Wifi |
| rated operational voltage | AC230V |
| electric current | 40A |
| Light indication | The green light of the opening and closing light is always on for closing, the red light is always on for opening, the undervoltage red light flashes slowly, and the overvoltage red light flashes rapidly The power light flashes slowly and is not connected to the internet, the light flashes rapidly and enters the connected state, and the light stays on for the connected state |
| Setting method | APP |
| Overvoltage protection range | 275±5V |
| Overvoltage recovery value | 250±10V |
| Undervoltage protection range | 175±5V |
| Undervoltage recovery value | 195±5V |
| Rated withstand impulse voltage | 4KV |
| Self recovery delay time | 30s±10s |
| Working mode | Timer (alarm clock), connection delay, interval delay, loop delay |
| Time Timer Format Setting | Hour: Minute: Second |
| Maximum timed quantity | 100 sets |
| Delay range | 1s~99h 59min 59s |
| Other functions | Manual switch, latitude function |
| CONTACT CAPACITY | Ue/ le: AC-12 240V/10A |
| Electrical lifespan | 1×10⁵ |
| mechanical life | 2×10⁶ |
| ambient temperature | -5℃~40℃ |
| Installation method | Rail type |
