Distribution Boxes

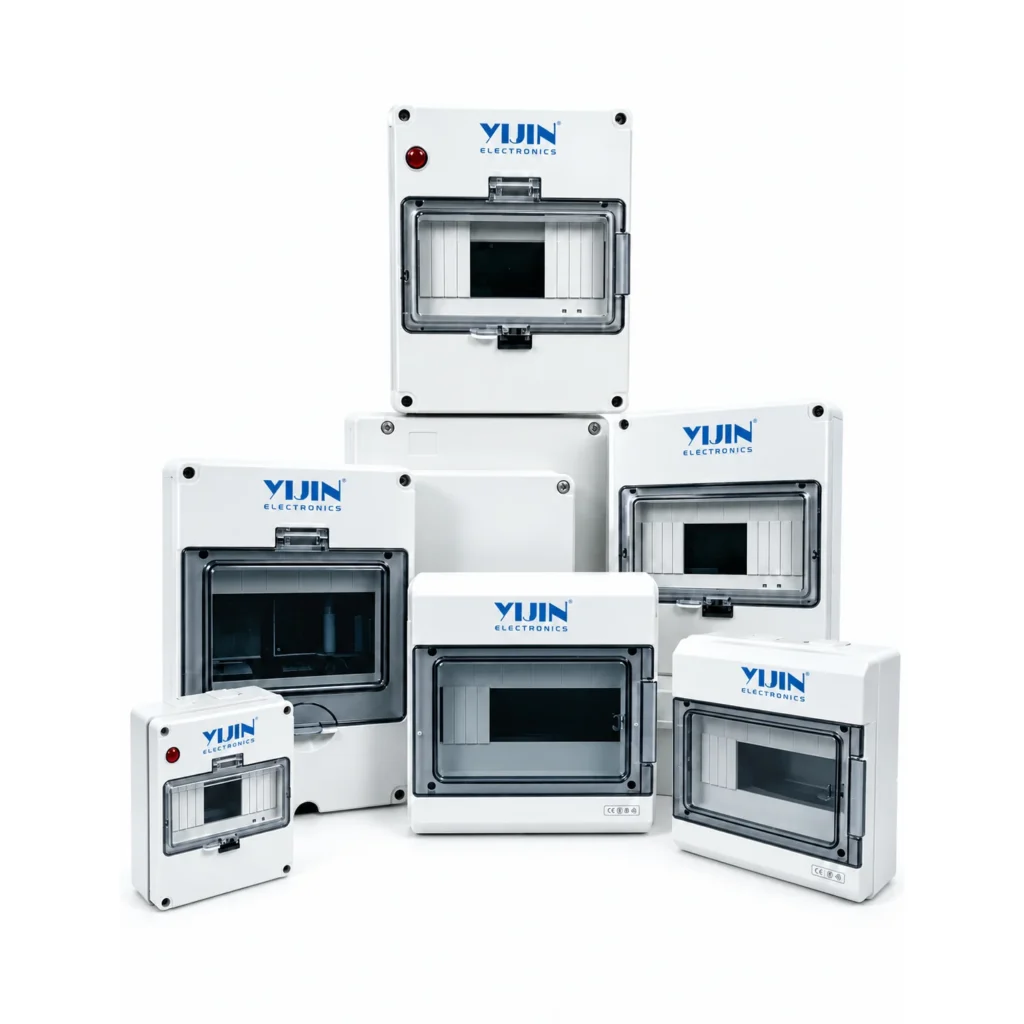

H Series Distribution Box
Material:ABS,PC
Waterproof Rating: IP65 (Silicone Rubber Sealed)
Colortype: Gray
Operating temperature:-40°C-85°C
| Model | L | W | H | Dia. | Packing Qty (PCS) | P/N |
|---|---|---|---|---|---|---|
| YJ-HB1504 | 212 | 107 | 92 | Can be drilled freely within size range | 1 | HB211009G |
| YJ-HB1506 | 200 | 165 | 100 | Can be drilled freely within size range | 1 | HB201610G |
| YJ-HB1509 | 200 | 219 | 100 | Can be drilled freely within size range | 1 | HB202110G |
| YJ-HB1512 | 230 | 273 | 110 | Can be drilled freely within size range | 1 | HB232711G |
| YJ-HB1518 | 230 | 381 | 110 | Can be drilled freely within size range | 1 | HB233811G |
| YJ-HB1524 | 380 | 273 | 110 | Can be drilled freely within size range | 1 | HB382711G |
| YJ-HB1536 | 280 | 381 | 110 | Can be drilled freely within size range | 1 | HB283811G |
| Model | L | W | H | Dia. | Packing Qty (PCS) | P/N |
|---|---|---|---|---|---|---|
| YJ-HA1504P | 210 | 143 | 100 | Can be drilled freely within size range | 40 | HA211410G |
| YJ-HA1508P | 210 | 215 | 115 | Can be drilled freely within size range | 40 | HA212111G |
| YJ-HA1512P | 260 | 298 | 140 | Can be drilled freely within size range | 40 | HA262914G |
| YJ-HA1518P | 285 | 410 | 140 | Can be drilled freely within size range | 40 | HA284114G |
| YJ-HA1524P | 298 | 420 | 140 | Can be drilled freely within size range | 40 | HA294214G |
| Model | L | W | H | Dia. | Packing Qty (PCS) | P/N |
|---|---|---|---|---|---|---|
| YJ-HT1505 | 160 | 120 | 95 | 40 | 40 | HT161209G |
| YJ-HT1508 | 200 | 155 | 95 | 30 | 30 | HT201509G |
| YJ-HT1512 | 255 | 200 | 108 | 20 | 20 | HT252010G |
| YJ-HT1515 | 300 | 200 | 108 | 20 | 20 | HT302010G |
| YJ-HT1518 | 360 | 200 | 108 | 20 | 20 | HT362010G |
| YJ-HT1524 | 365 | 275 | 108 | 10 | 10 | HT362710G |
Unit: mm
Standard color: Gray (G). Other colors are available on request. Please mark the required color at the end of P/N, e.g. Black (B), White (W).
