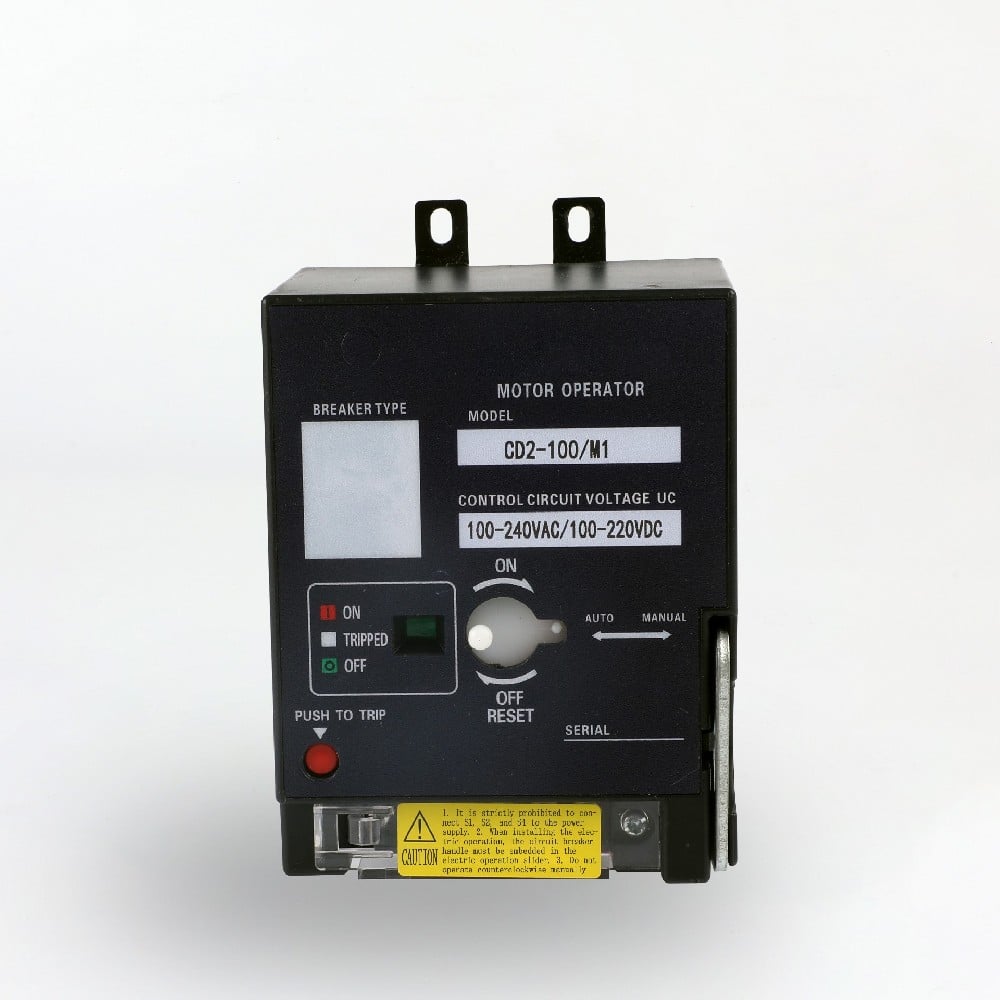

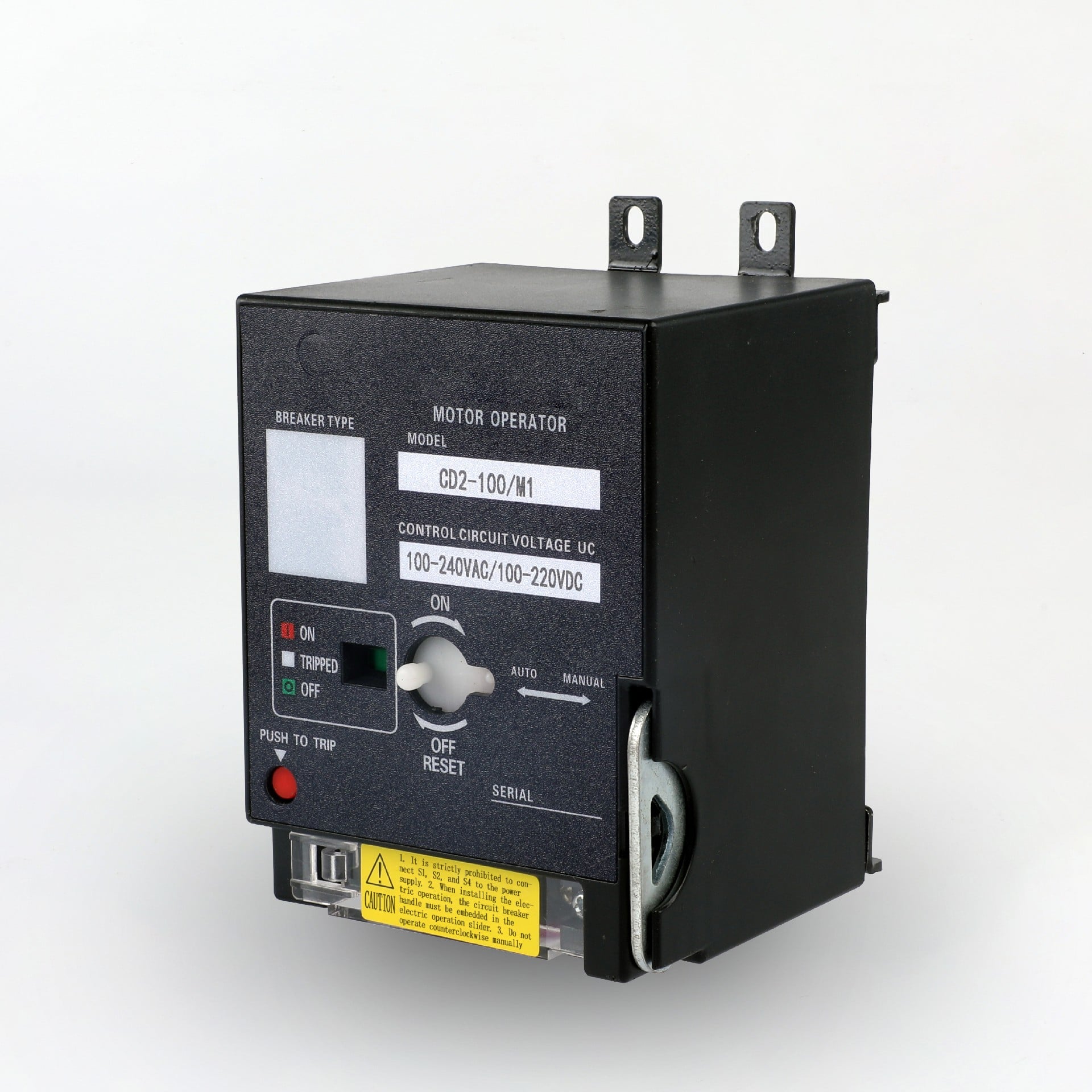

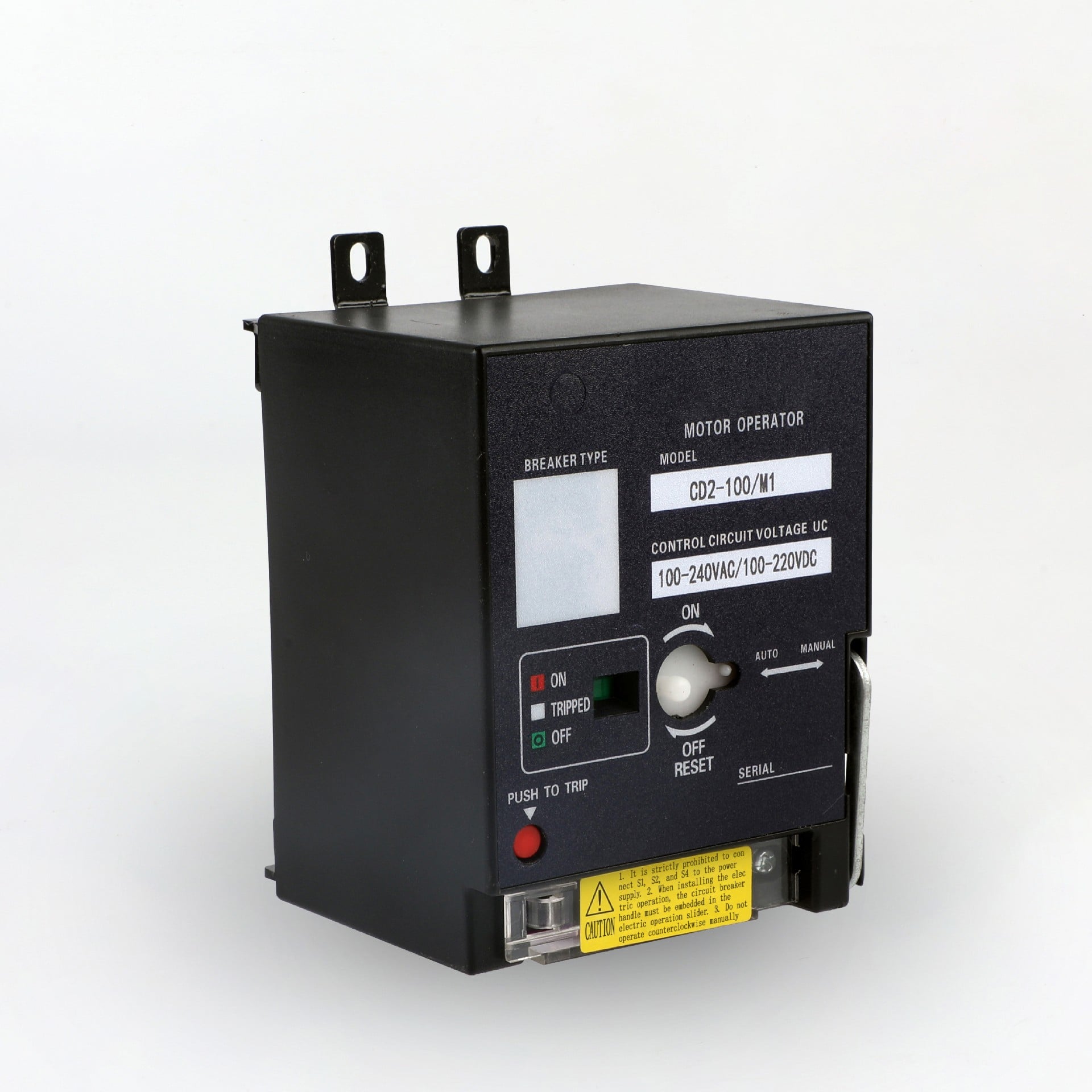

CD2 plastic shell electric operating mechanism
Scope applicationRelays are automatic switching components with isolation functions, widely used in remote control, telemetry, communication, automatic control, mechatronics, and power electronic equipment. They are one of the most important control components.Relays generally have sensing mechanisms (input parts) that can reflect certain input variables such as current, voltage, power, impedance, frequency, temperature, pressure, speed, light,…
product overview
The CD2 series electric operating mechanism is a specialized actuator driven by a small permanent magnet DC motor, used for remote electric closing, opening, and re closing operations of 63~1250A molded case circuit breakers. It can achieve remote or centralized control of various electrical equipment.

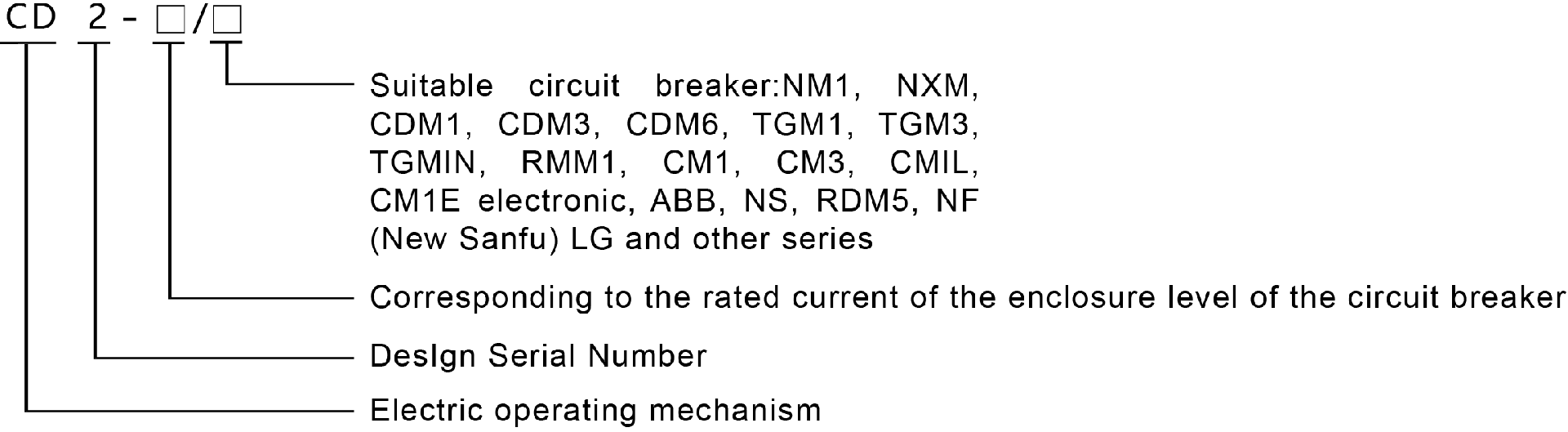

Model meaning
Product Features
1. Compact structure, small size, easy installation, reliable operation, and can also be manually operated with an operating handle.
2. The product adopts advanced “switching power supply” technology internationally, and its mechanical life, electrical life, and reliability can be comparable to similar international products.
3. The CD2 series electric operator is versatile in both AC and DC, with a wide range of voltage applications for control circuits and low operating currents.
4. There are color codes (red, green, white) indicating the closing, opening, and tripping status of the circuit breaker
Main technical parameters
| PRODUCT MODEL | CD2-100/M1(400/M1) |
| product name | Plastic shell electric operating mechanism |
| rated operational voltage | DC24V、AC100V/DC110V、AC230V/DC220V、AC400V |
| rated insulation voltage | 250V, rated working voltage of 400V is 500V |
| AC voltage frequency | 50Hz/60Hz |
| Rated working system | short-time duty |
| Action time | 0.7~1.5s |
| Work pressure resistance | 1890V, historical 5s |
| operation temperature | -5℃~40℃ |
| heat resistance | 50 ℃, humidity 90 |
| mechanical life | >10000 times |
