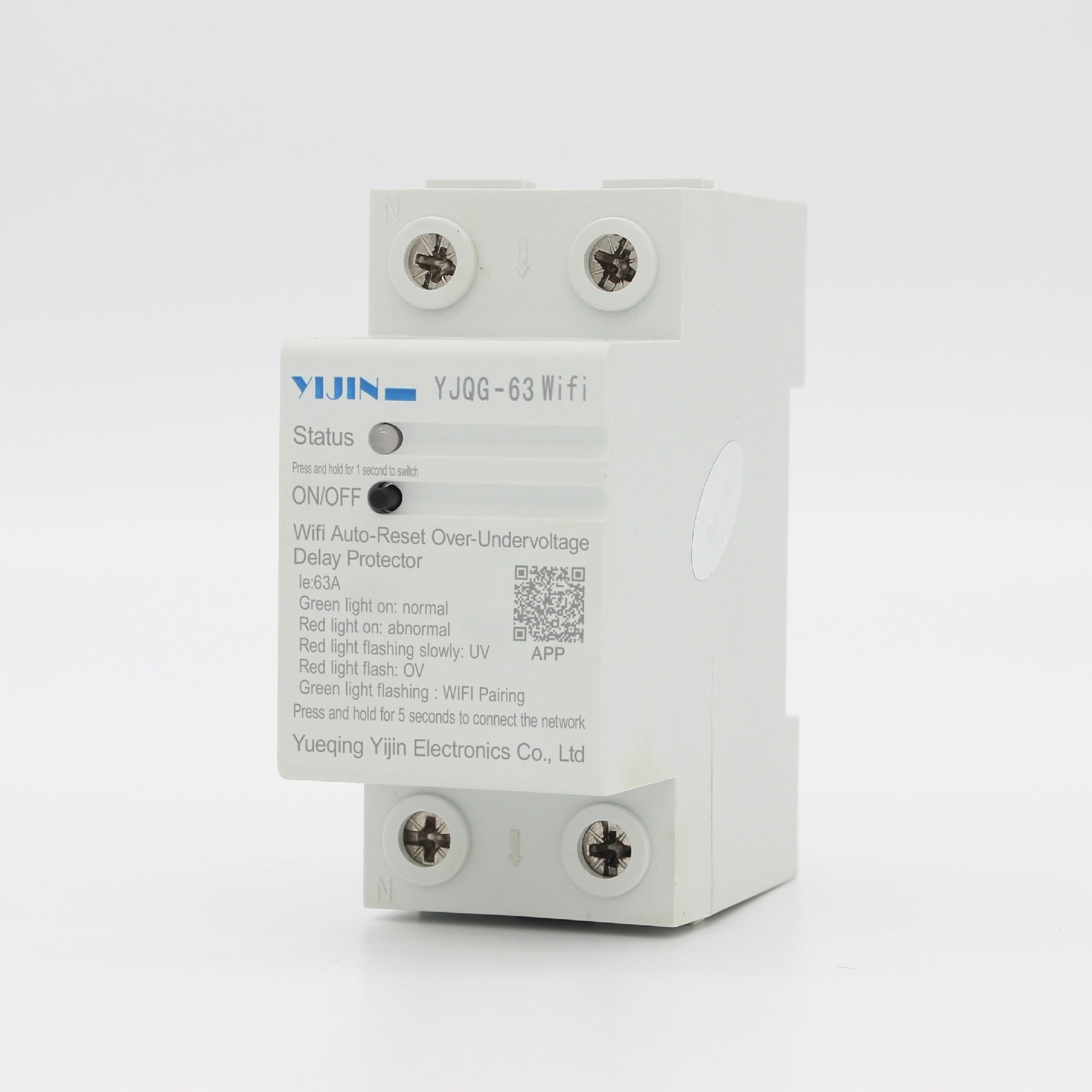

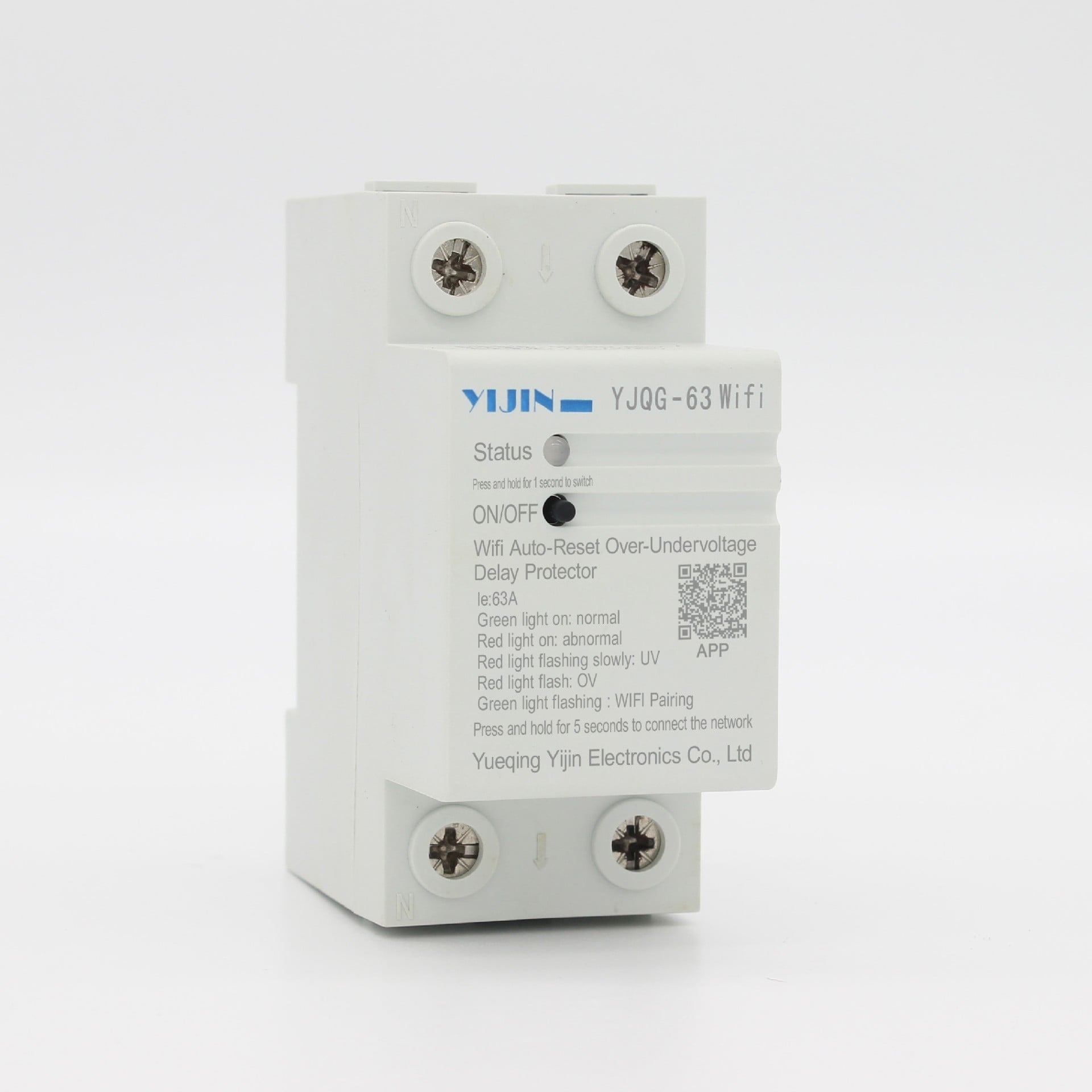

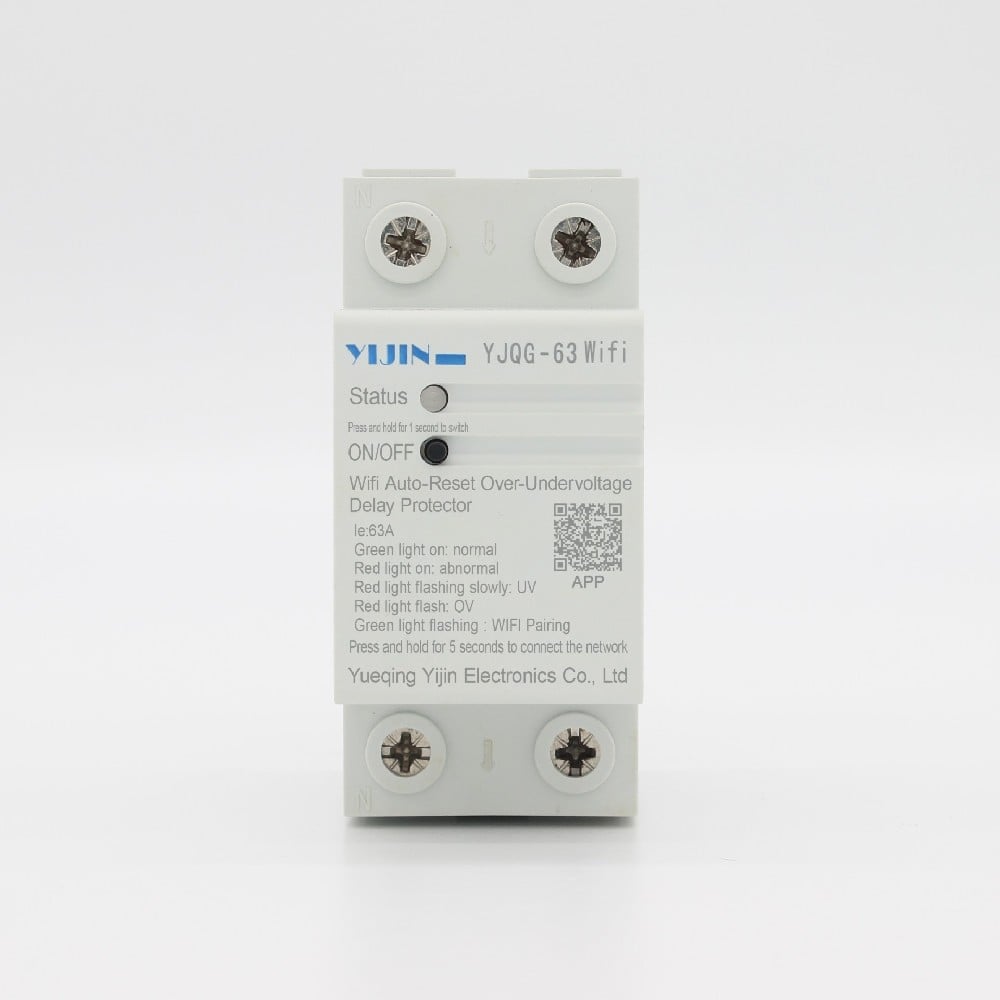

YJQG-63 WiFi automatic reset overvoltage and undervoltage delay protector

product overview

YJQG-63WiFi automatic reset overvoltage and undervoltage delay protector (intelligent WiFi overvoltage and undervoltage protector) is suitable for use as a timed on/off delay overvoltage and control device in control circuits with rated control power supply voltage of 110V~240V and current of 63A. It can also be used as a time control component to turn on or off circuit breakers at predetermined times.

Model Meaning

2.1 The product adopts a modular structure and is installed on a 35mm standard guide rail, making it easy for customers to quickly install, repair, or replace;

2.2 Equipped with a manual/automatic switch,

2.3 Fast and reliable opening and closing actions, with a maximum breaking capacity of up to 10kA;

2.4 Single phase control can use 2P miniature circuit breaker products;

2.5 Three phase control can use 4P or 3P miniature circuit breaker products;

2.6 The current specifications are 40A, 63A, 80A, 100A, and 125A to choose from:

2.7 Accept signals from smart meters, cut off the circuit (power outage due to arrears), automatically close the circuit (power transmission due to payment), close the circuit, and provide feedback on the status of the circuit breaker to the energy meter and backend system!

Main technical parameters
