Yueqing Yijin Electronics Co., Ltd.

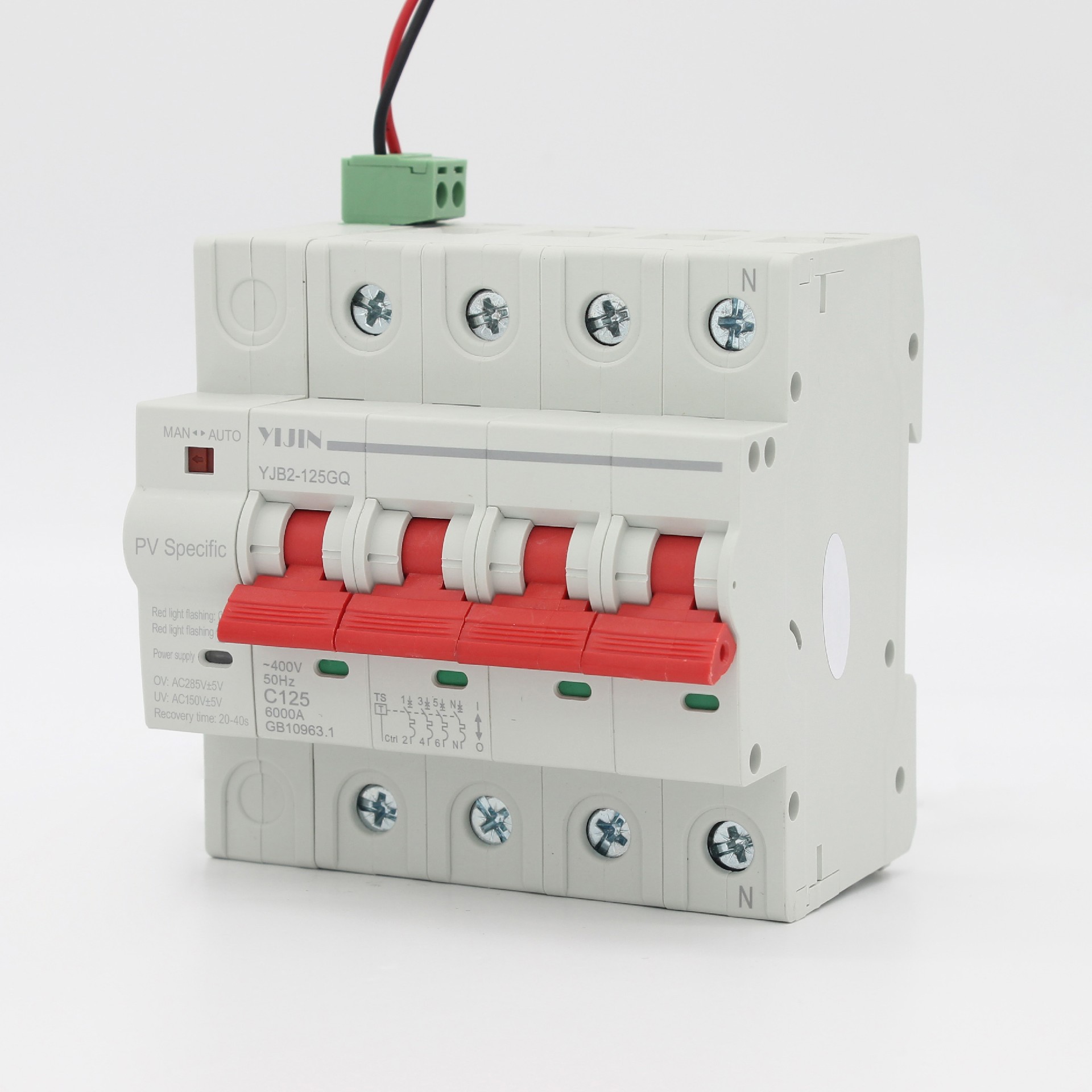

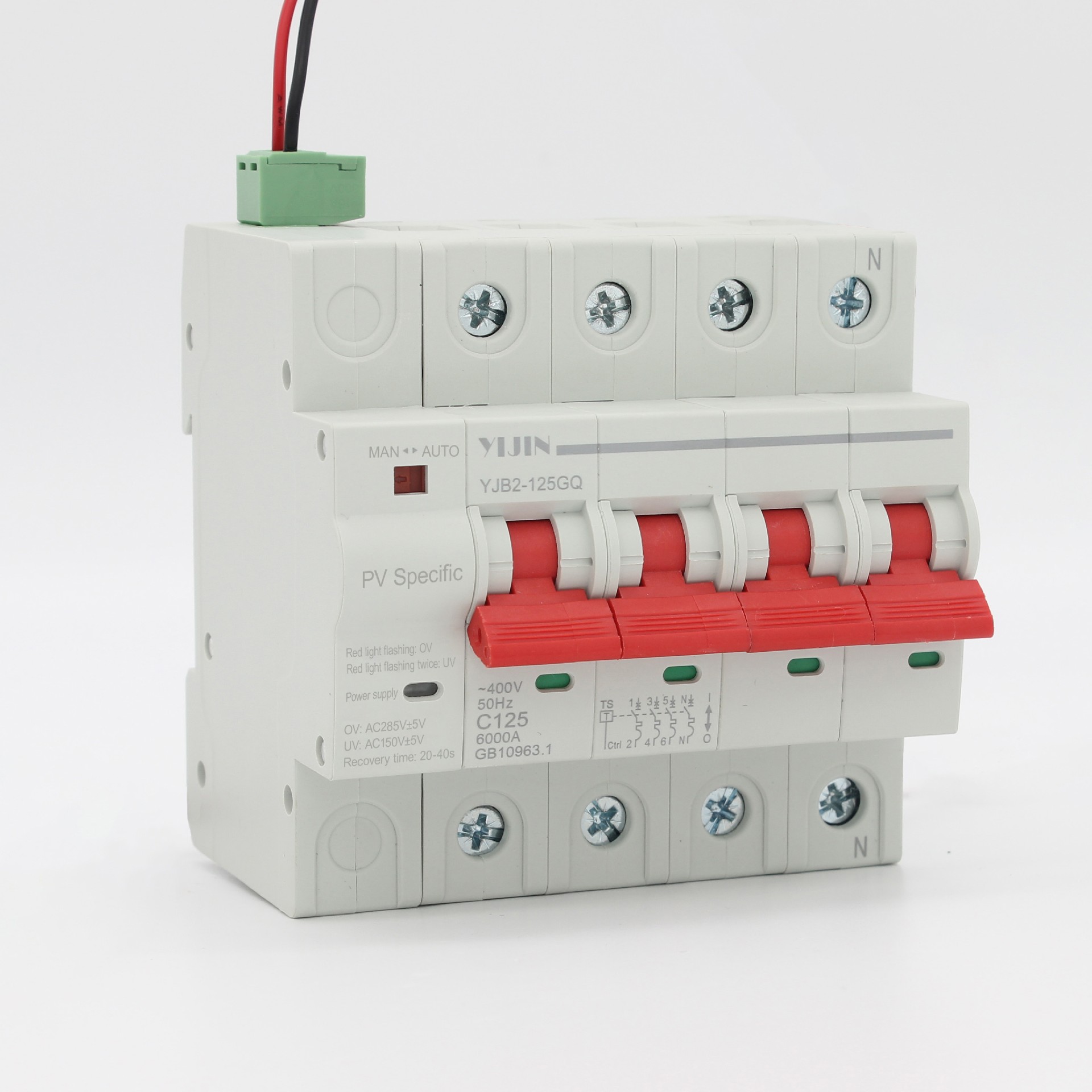

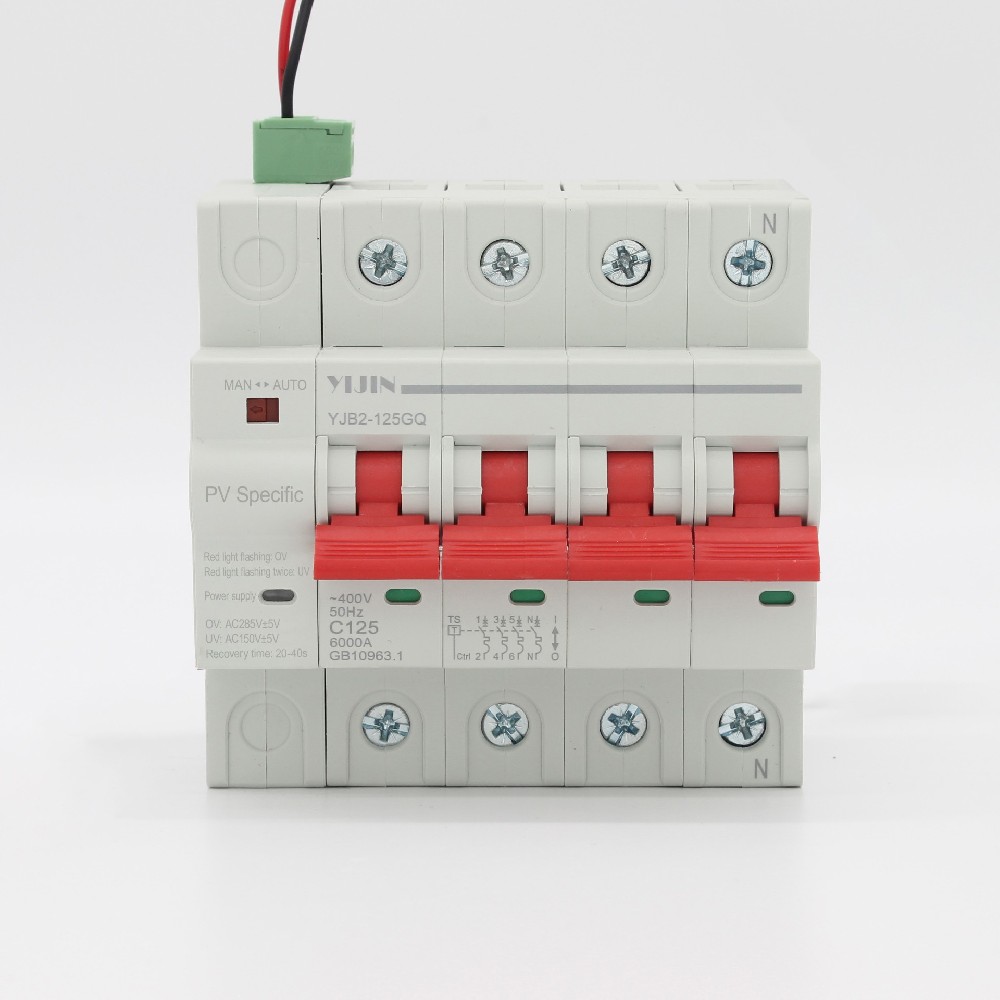

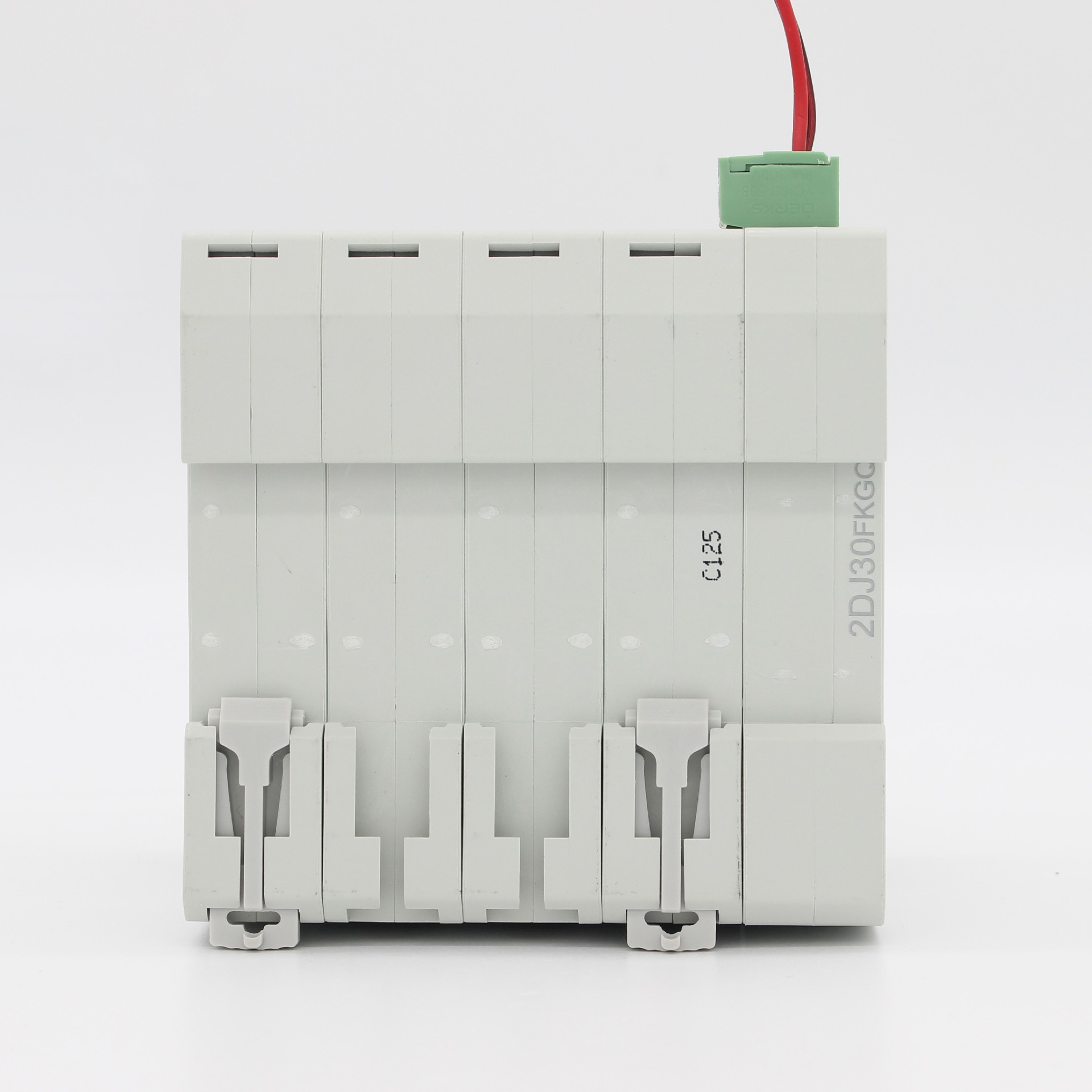

Isolating Switch
YJB2-125GQ / 3P+N
Product IntroductionWIFI intelligent reclosing protector is suitable for remote control and multi person control in AC 50HZ and rated 220V power lines. It can be set to turn on and off according to Beijing time and is suitable for remote intelligent control of electrical equipment in various environments, such as homes, schools, enterprises, municipal engineering,…
Scope application
YJB2-125GQ series cost control prepaid photovoltaic overvoltage and undervoltage reclosing (also known as external circuit breakers for electric energy meters) is mainly used in AC 50Hz, rated working voltage 230V/400V, and rated current up to 80A lines to detect the power supply voltage in real time, achieve overvoltage or undervoltage automatic disconnection protection, and automatically reclose after the power supply voltage is restored, ensuring the safe operation of negative equipment within the normal voltage range. It also performs remote automatic closing, opening control or automatic signal control closing and opening of the line, and together with intelligent prepaid electricity meters, forms a complete prepaid electricity meter system.

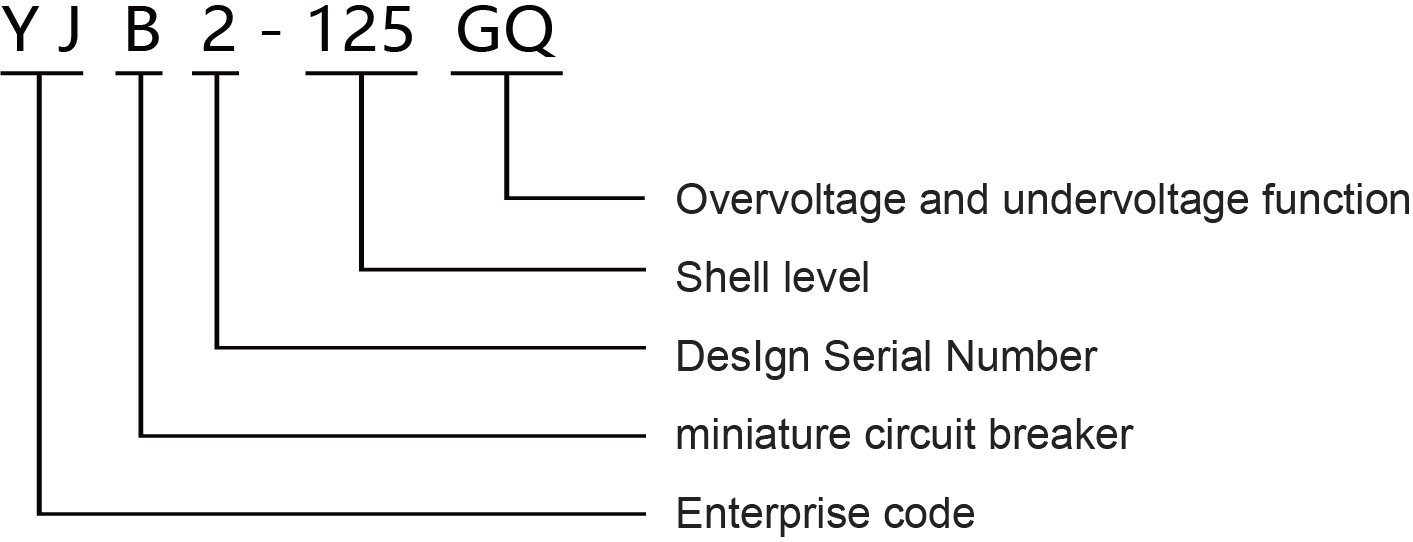

Model Meaning
Product Features
3.1 The product adopts a modular structure and is installed on a 35mm standard guide rail, making it easy for customers to quickly install, repair, or replace;
3.2 Equipped with a manual/automatic switch;
3.3 Fast and reliable opening and closing actions, with a maximum breaking capacity of up to 10kA;
3.4 Single phase control can use 2P miniature circuit breaker products;
3.5 Three phase control can use 4P or 3P miniature circuit breaker products;
3.6 The product has overvoltage and undervoltage functions, overvoltage/undervoltage opening, and automatic closing under normal pressure;
3.7 There are 63A, 80A, 100A, and 125A current specifications to choose from;
3.8 Accept the signal from the smart meter, cut off the circuit (power outage due to arrears), automatically close the circuit (power transmission due to payment), close the circuit, and provide feedback on the status of the circuit breaker to the energy meter and the backend!
PRODUCT FUNCTION
[Opening and closing of overdue fees] [Overload and short circuit protection] [Cost control status indication]
【 Maintenance of arrears deduction 】 【 Status feedback 】 【 Manual/automatic switching mode 】
Main parameters and technical performance
| PRODUCT MODEL | YJB2-125GQ |
| product name | Special reclosing for cost controlled electricity meters (also known as external circuit breakers for energy meters) |
| rated operational voltage | AC 230V AC400V |
| Rated current | 25-125A |
| Rated working frequency | 50Hz |
| number of poles | 2P, 4P |
| Overvoltage startup value | 285±5V |
| Normal pressure recovery value | 240~260V |
| Undervoltage startup value | 150±5V |
| Normal pressure recovery value | 180~200V |
| Recovery delay time | 20~40s |
| Working voltage range | 65%-120% |
| Impulse withstand voltage Uimp | 6kV |
| Delay action time (mechanism closing delay) | ≥ 4s (time can be customized) |
| Breaking Capacity | 63A and below 10KA/80A and above 6KA |
| mechanical life | More than 6000 times |
| Electrical life | More than 10000 times |
| protection grade | IP20 |
Normal working environment
1. The surrounding air humidity is -25 ℃~+45 ℃, and its average value within 24 hours does not exceed+20 ℃.
2. The altitude shall not exceed 2000m.
3. The relative humidity of the air at the installation site under atmospheric conditions shall not exceed 20% at a maximum temperature of+40 ℃; Higher relative humidity is allowed at lower temperatures, with the average lowest temperature of the wettest month not exceeding+20 ℃ and the average maximum relative humidity of that month not exceeding 90%. And taking into account the condensation that occurs on the surface of the product due to temperature changes.
4. Pollution level: Level 3.
5. Installation category: Category III
6. Installation location: The external magnetic field should not exceed 5 times the geomagnetic field in any direction.
Product size

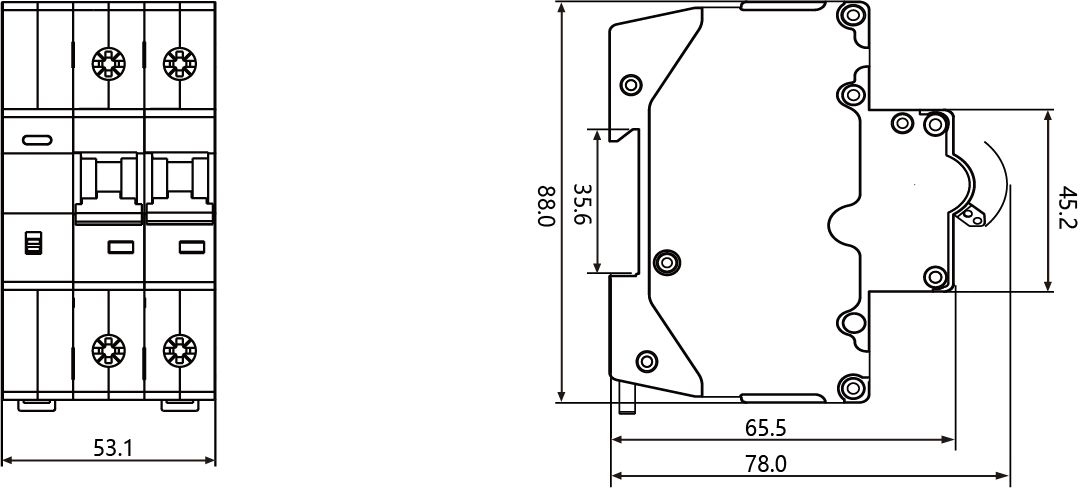

2P YJB2 external circuit breaker for electric energy meter

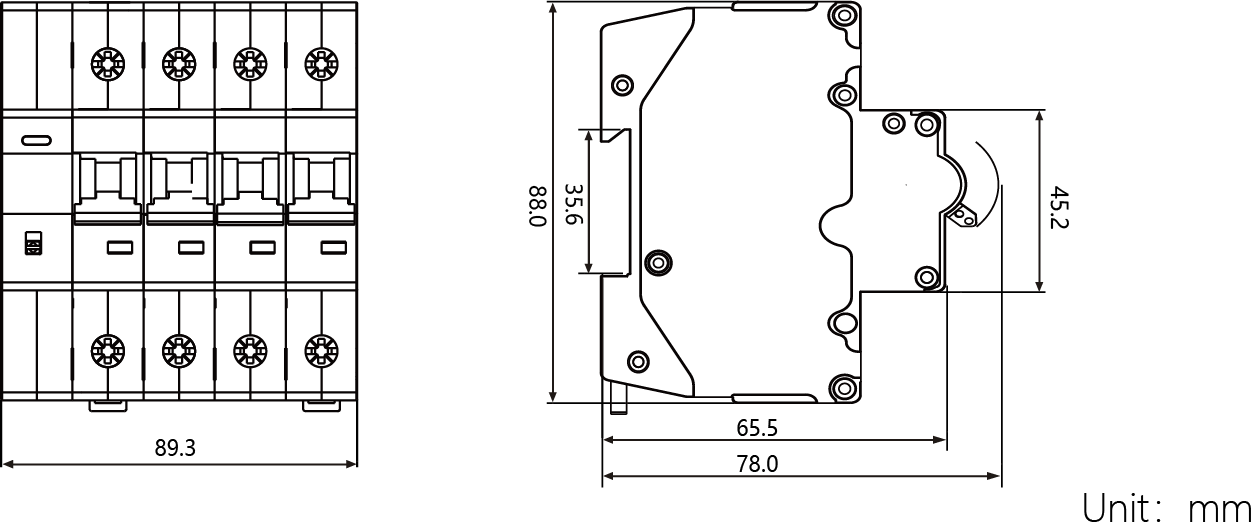

4P YJB2 external circuit breaker for electric energy meter
Ordering instructions
When placing an order, it is necessary to specify the product model and quantity, for example: YJB2-125GQ 63A 4P 60 units;
If there are special requirements, they should be noted separately.
For electrical maintenance and installation, it is necessary to ensure that the operator holds the qualification for electrical work and takes necessary power-off and insulation protection measures.
