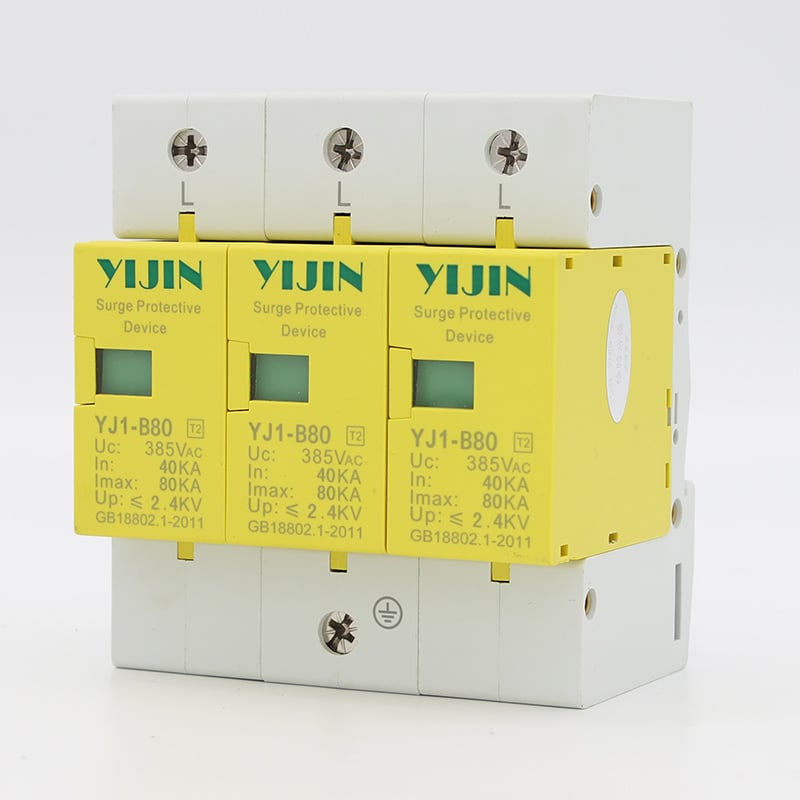

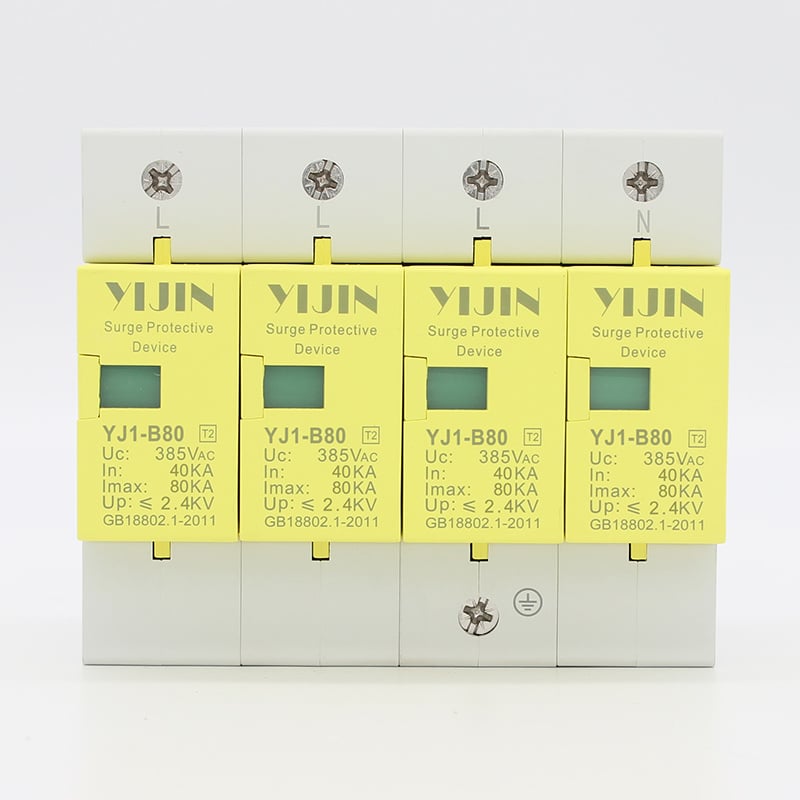

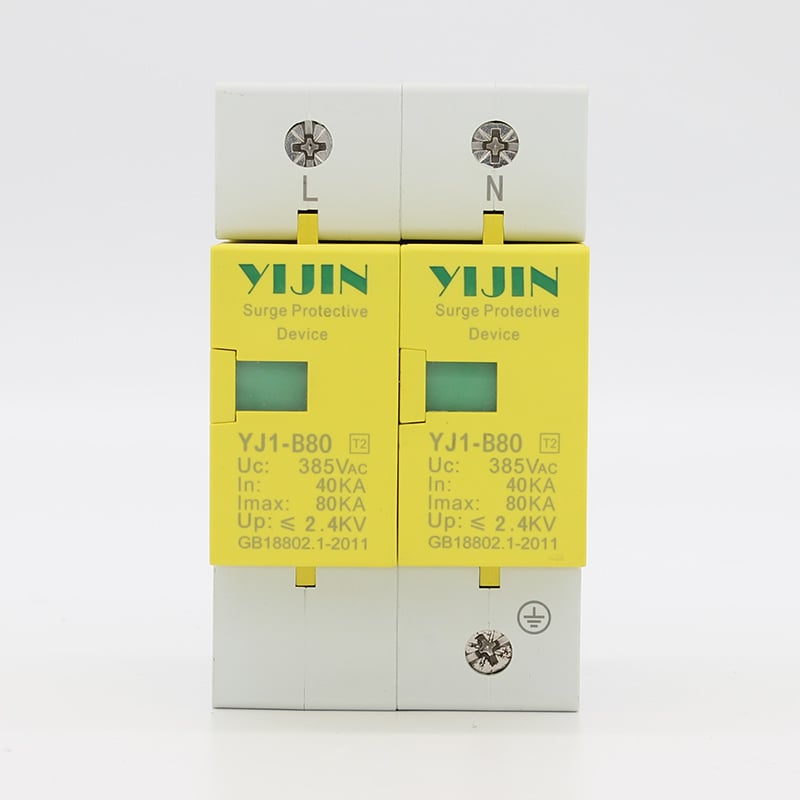

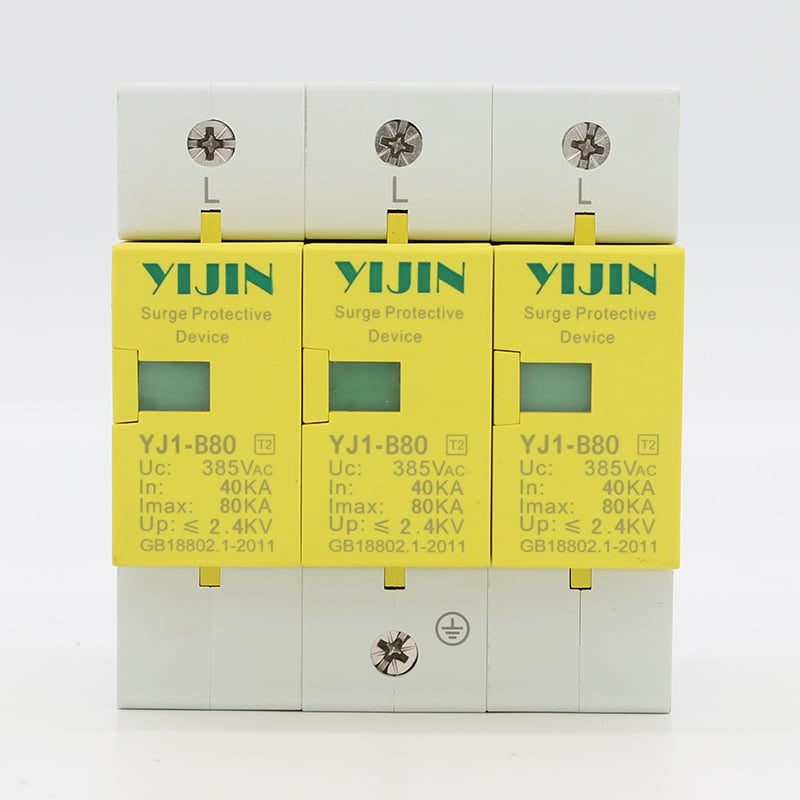

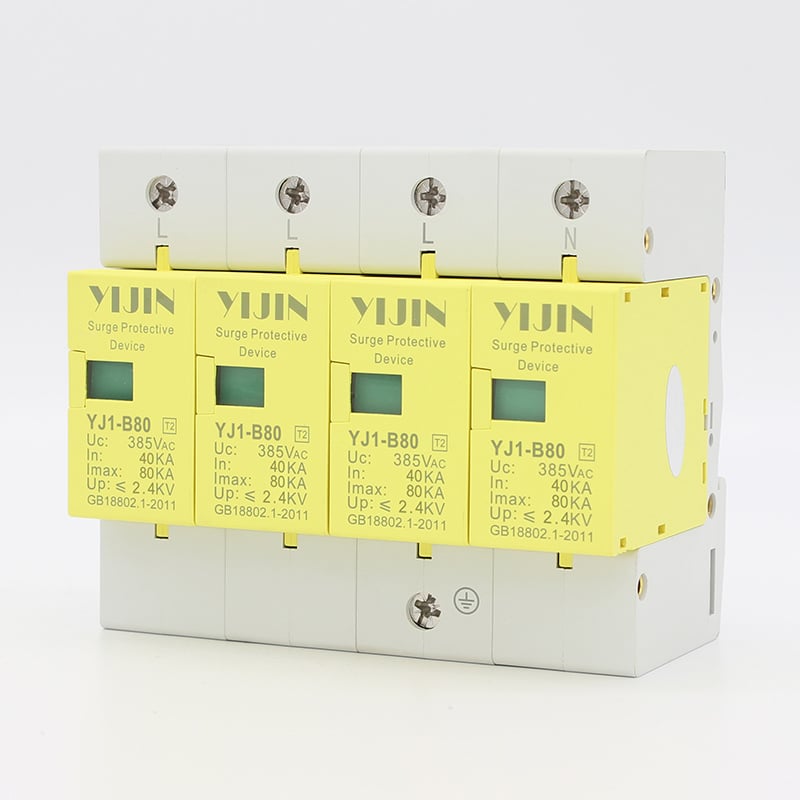

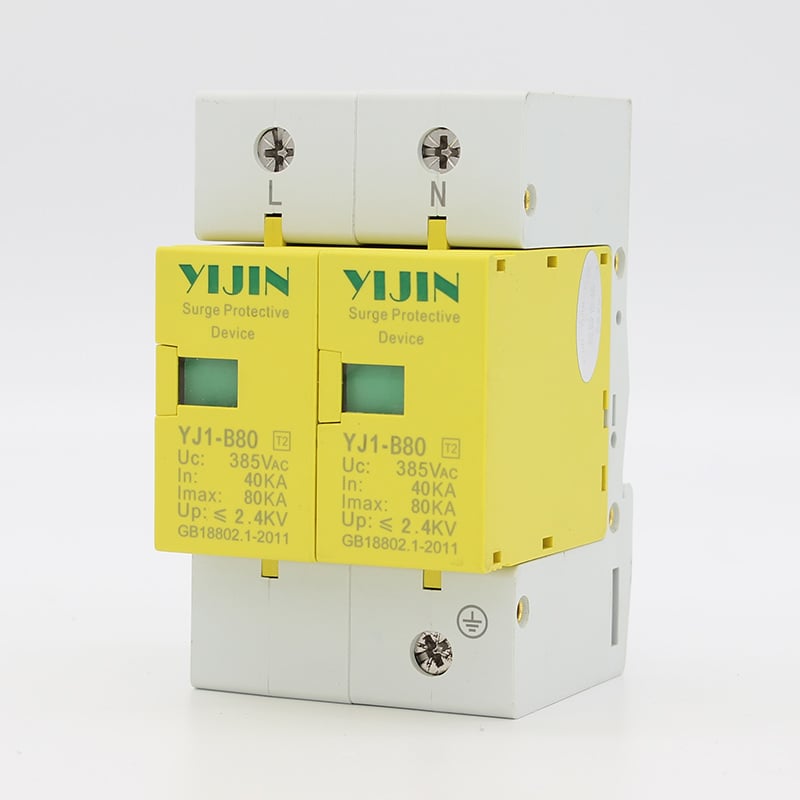

YJ-B80 Surge Protector

Product Introduction

This series of surge protectors is suitable for TT, IT, TN-S, N-C-S and other power supply systems with AC 50Hz, 380V and below, and can be used as equipotential connections at the interface of LPZ1, LP22 and LP23 zones. Its design basis complies with IEC61643-1, GB18802.1， The shell is designed to be installed on a 35mm electrical rail, and the product has a built-in failure release device. When the surge protector fails due to overcurrent, overheating, or breakdown, the failure release device can automatically disconnect it from the power grid, and the visual alarm indicator window changes from green (normal) to red (fault).

application

YJ1 series modules are used for equipotential connection during lightning strikes and are installed at the junction of LPZOB zone, LPZ1 zone, and LPZ2 zone. They are usually installed in floor distribution boxes, computer centers, telecommunications rooms, elevator control rooms, frequency conversion equipment control rooms, hospital operating rooms, monitoring rooms, and distribution boxes in places with electronic medical equipment. They are also used in dispersed small villas

SPD should be installed in the household distribution box.

Product design and ordering instructions: Users should clearly indicate the product model and quantity when designing and ordering products.

Product Features

a、 The protector unit can be replaced without changing the base;

b、 Can withstand up to 80kA (8/20 μ s) lightning current surge;

c、 Action response time less than 25 nanoseconds;

d、 The color of the visual window indicates the working status of the protection, green (normal) and red (fault).

e、 High energy surge protection

f、 Remote signaling alarm interface

g、 Failure detection indication

h、 Standard modular installation

i、 Reaction speed: nanosecond level

j、 Built in instantaneous overcurrent circuit breaker device

k、 The maximum discharge current of a single module is 80kA (8/20 μ S)

l、 Built in overheat circuit breaker device

m、 Anti mistake design for plugging and unplugging

Normal working conditions

1. The ambient air temperature ranges from -40 ℃ to+70 ℃, with an average value not exceeding+35 ℃ within 24 hours.

2. The altitude shall not exceed 2000m.

3. The relative humidity of the air at the installation site under atmospheric conditions shall not exceed 50% at a maximum temperature of+40 ℃; Higher relative humidity is allowed at lower temperatures, with the average lowest temperature of the wettest month not exceeding+25 ℃ and the average maximum relative humidity of that month not exceeding 90%. And taking into account the condensation that occurs on the surface of the product due to temperature changes.

4. Pollution level: Level 2.

5. Installation category: Category II

6. Installation method: Adopting international standard guide rails.

Main parameters and technical performance

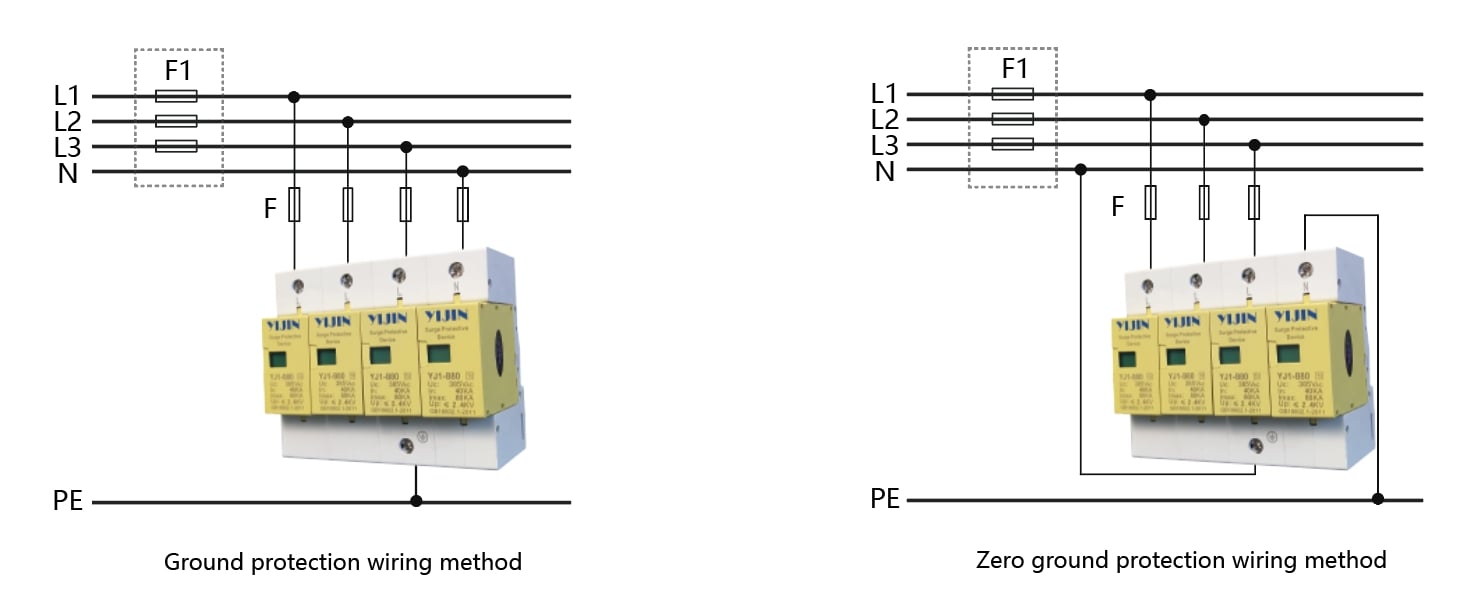

Wiring diagram

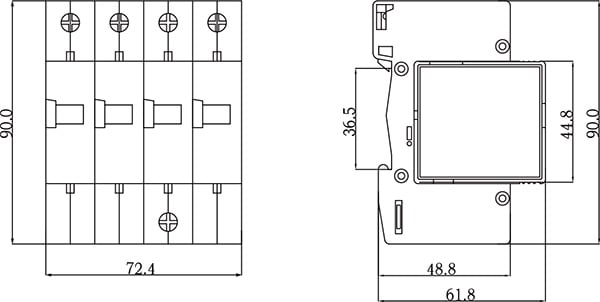

Product size parameters
