OF-SD integrated auxiliary alarm system

Scope application

The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the C9N series circuit breakers

Main technical parameters

product overview

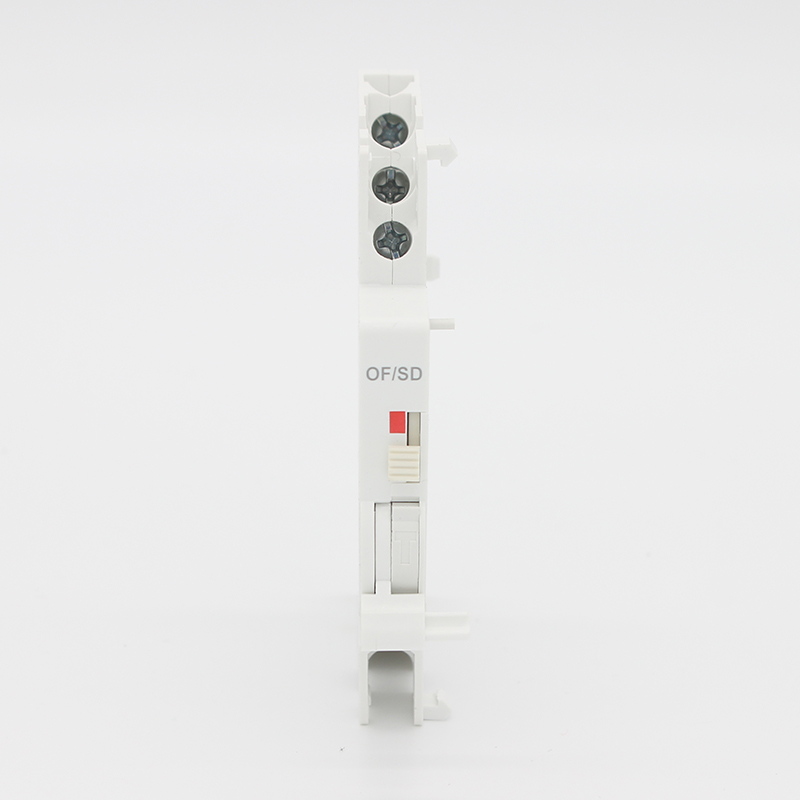

OF-SD auxiliary alarm integrated contact

Action characteristics:

Auxiliary: When the auxiliary contact is opened, terminals 11 and 12 are connected; When the auxiliary contact is closed, terminals 11 and 14 are connected.

Alarm: When the alarm contact opens, terminals 91 and 94 are connected; When the alarm contact is closed, terminals 91 and 92 are connected;

When the alarm contact is closed and the handle is manually opened, terminals 91 and 92 are still connected. When the assembled circuit breaker trips and opens due to a fault after the alarm contact is closed, terminals 91 and 92 are disconnected and terminals 91 and 94 are connected;
