Delixi DZ47S miniature circuit breaker accessories

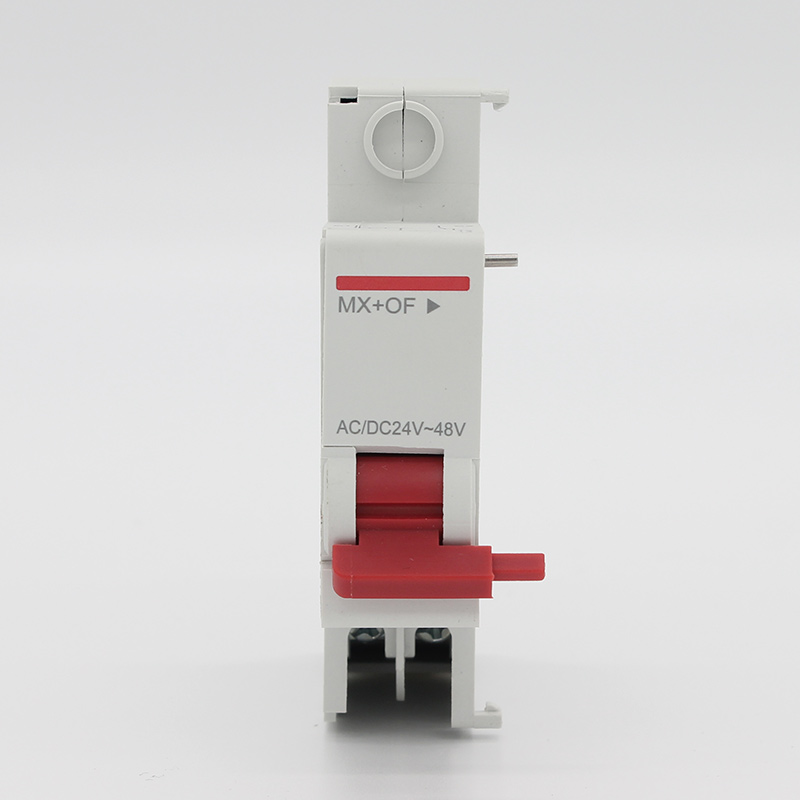

MX+OF shunt+auxiliary 24V~48V
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the DZ47s series circuit breakers, which achieve remote trip control and on/off status indication of the line
At 70%~110% of the rated control power supply voltage, the release should reliably operate to disconnect the circuit breaker. When the release is opened, C2、 Connect the 12 terminals and the external safety signal light will be on; When the release is closed, C2、 Terminal 14 is connected, and the external warning signal light is on; When the release is closed and the external button is connected, the mechanism of the release trips and drives the circuit breaker to trip and disconnect.
Scope of use
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the DZ47s series circuit breakers, which achieve remote trip control and on/off status indication of the line
Main technical parameters
| product name | model | Rated working voltage Un | Voltage value |
| Split excitation assist (active type) | MX+OF | 230V | DC 24V |
product overview
MX+OF shunt+auxiliary release
Action characteristics:
At 70%~110% of the rated control power supply voltage, the release should reliably operate to disconnect the circuit breaker. When the release is opened, C2、 Connect the 12 terminals and the external safety signal light will be on; When the release is closed, C2、 Terminal 14 is connected, and the external warning signal light is on; When the release is closed and the external button is connected, the mechanism of the release trips and drives the circuit breaker to trip and disconnect.
| Rated frequency | protection grade | rated insulation voltage | Product width | Ambient Temperature | storage temperature |
| 50/60Hz | IP20 | 500V | 18mm | -35℃~+70℃ | -35℃~+70℃ |
