EA9/CDB9/NDB2 miniature circuit breaker accessories

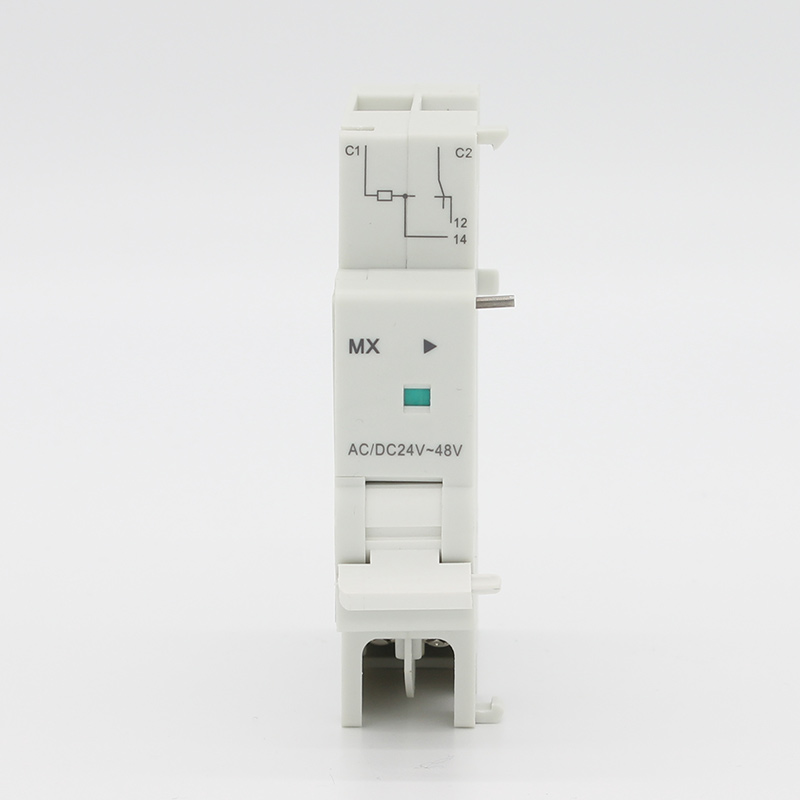

MX Split Excitation
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for Schneider EA9, Delixi CDB9, and Liangxin NDB2 series circuit breakers, achieving remote trip control and on/off status indication of the line
At 70%~110% of the rated control power supply voltage, the release should reliably operate to disconnect the circuit breaker.
Scope of use
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for Schneider EA9, Delixi CDB9, and Liangxin NDB2 series circuit breakers, achieving remote trip control and on/off status indication of the line
Main technical parameters
|
product name |
model |
Rated working voltage Un |
Voltage value |
| Single point excitation |
MX |
230V |
DC 24V |
product overview
MX shunt release
Action characteristics:
At 70%~110% of the rated control power supply voltage, the release should reliably operate to disconnect the circuit breaker.
|
Rated frequency |
protection grade |
rated insulation voltage |
Product width |
Ambient Temperature |
storage temperature |
|
50/60Hz |
IP20 |
500V |
18mm |
-35℃~+70℃ |
-35℃~+70℃ |
