Beijing people G65 small circuit breaker accessories

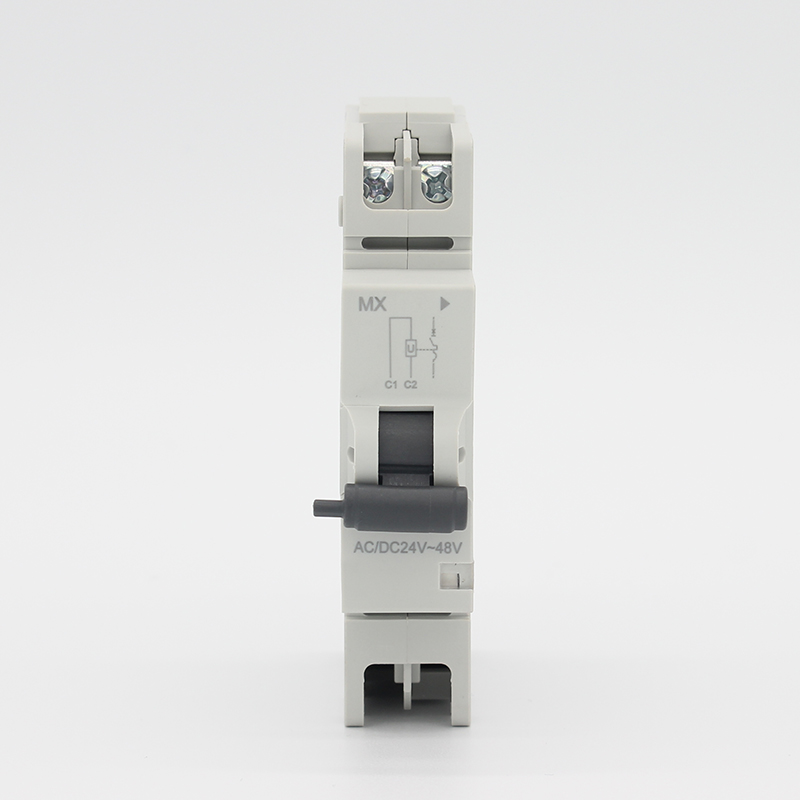

MX Split Excitation
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the Beijing People's G65 series circuit breakers, which achieve functions such as line working status indication and trip alarm
At 70%~110% of the rated control power supply voltage, the release should reliably operate to disconnect the circuit breaker.
Scope of use
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the Beijing People's G65 series circuit breakers, which achieve functions such as line working status indication and trip alarm
Main technical parameters
|
product name |
model |
Rated working voltage Un |
Voltage value |
|
Overvoltage and undervoltage release device |
MV+MN |
230V |
Overvoltage value Uvo=280V ± 5% Undervoltage value Uoe=170V ± 5% |
product overview
MX shunt release
Action characteristics:
At 70%~110% of the rated control power supply voltage, the release should reliably operate to disconnect the circuit breaker.
|
Rated frequency |
protection grade |
rated insulation voltage |
Product width |
Ambient Temperature |
storage temperature |
|
50/60Hz |
IP20 |
500V |
18mm |
-35℃~+70℃ |
-35℃~+70℃ |
