Fengyuan new circuit breaker accessories
MV+MN three-phase four wire overvoltage and undervoltage
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the Fengyuan series circuit breakers, which achieve remote trip control and on/off status indication of the line
When the main circuit voltage is (85%~110%) Ue, the release should be able to maintain long-term operation of the circuit breaker. When the voltage of the main circuit rises to (280V ± 5%) or falls to (170V ± 5%), the release combined with the circuit breaker should act to drive the circuit breaker to open. Undervoltage protection interval: (35%~70%)Ue
Scope of use
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the Fengyuan series circuit breakers, which achieve remote trip control and on/off status indication of the line
Main technical parameters
|
product name |
model |
Rated working voltage Un |
Voltage value |
|
Three phase four wire overvoltage and undervoltage |
MV+MN |
230V |
Overvoltage value Uvo=280V ± 5% |
product overview

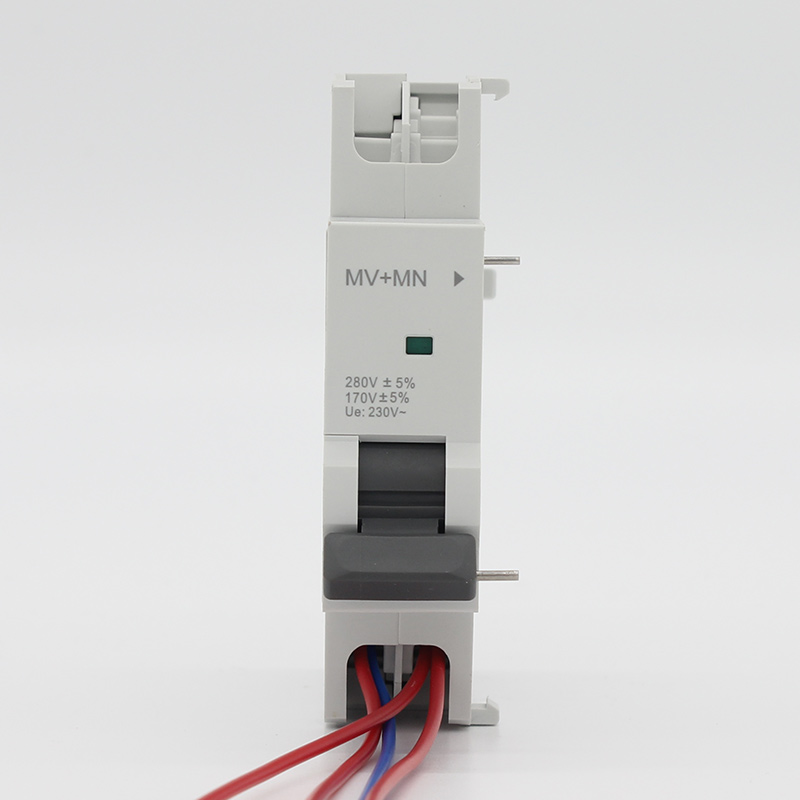

MV+MN three-phase four wire overvoltage and undervoltage release device
Action characteristics:
When the main circuit voltage is (85%~110%) Ue, the release should be able to maintain long-term operation of the circuit breaker. When the voltage of the main circuit rises to (280V ± 5%) or falls to (170V ± 5%), the release combined with the circuit breaker should act to drive the circuit breaker to open. Undervoltage protection interval: (35%~70%)Ue
|
Rated frequency |
protection grade |
rated insulation voltage |
Product width |
Ambient Temperature |
storage temperature |
|
50/60Hz |
IP20 |
500V |
18mm |
-35℃~+70℃ |
-35℃~+70℃ |
