DZ47 miniature circuit breaker accessories
MV overvoltage
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for DZ47-60 (C45), NB7, DZ158-125 (NC) and other series of circuit breakers
When the main circuit voltage is (85%~110%) e, the release should be able to maintain long-term operation of the circuit breaker. When the voltage of the main circuit rises to 270V ± 5%, the release device combined with the circuit breaker should act to drive the circuit breaker to open.
Scope application
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for DZ47-60 (C45), NB7, DZ158-125 (NC) and other series of circuit breakers
Main technical parameters
| product name | model | Rated working voltage Un | Voltage value |
| Overvoltage release device | MV | 230V | Overvoltage value Uvo=270V ± 5% |
product overview

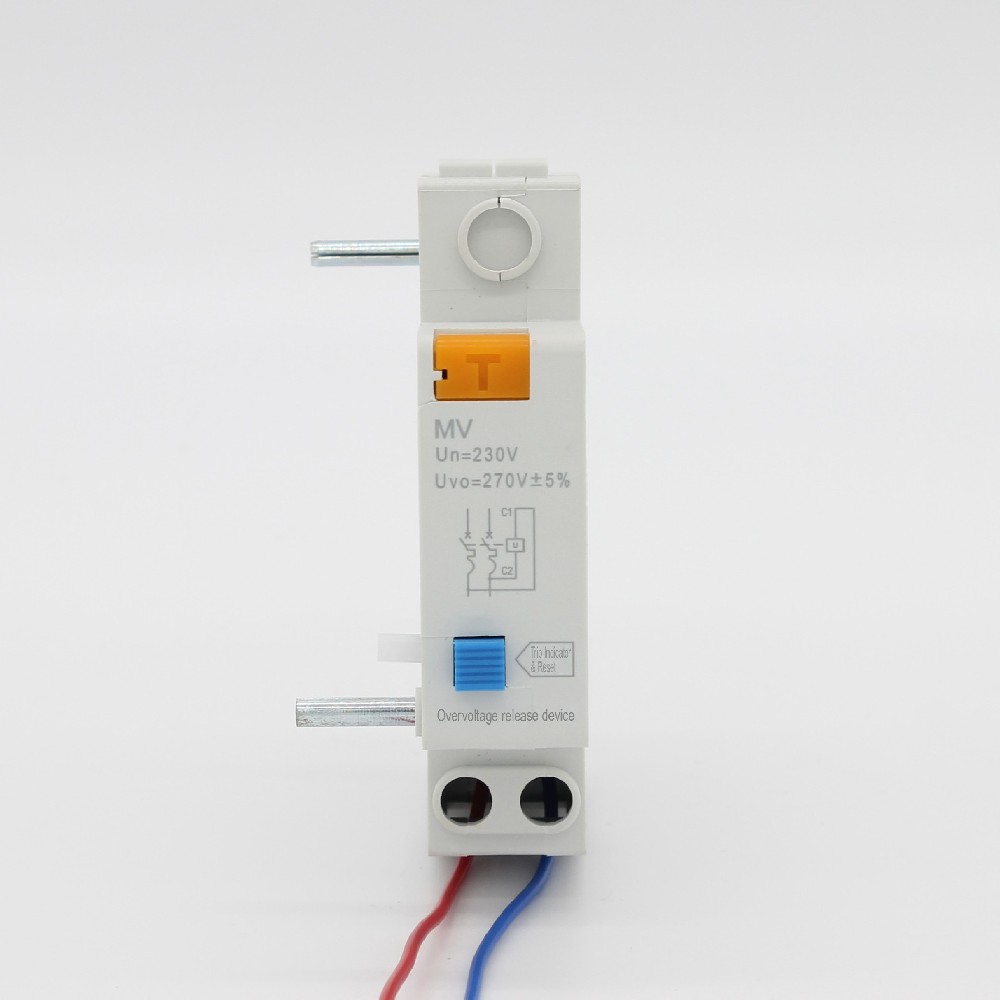

MV overvoltage release device
Action characteristics:
When the main circuit voltage is (85%~110%) e, the release should be able to maintain long-term operation of the circuit breaker. When the voltage of the main circuit rises to 270V ± 5%, the release device combined with the circuit breaker should act to drive the circuit breaker to open.
| Rated frequency | protection grade | rated insulation voltage | Product width | Ambient Temperature | storage temperature |
| 50/60Hz | IP20 | 500V | 18mm | -35℃~+70℃ | -35℃~+70℃ |
