Tianzheng TGB1N miniature circuit breaker accessories

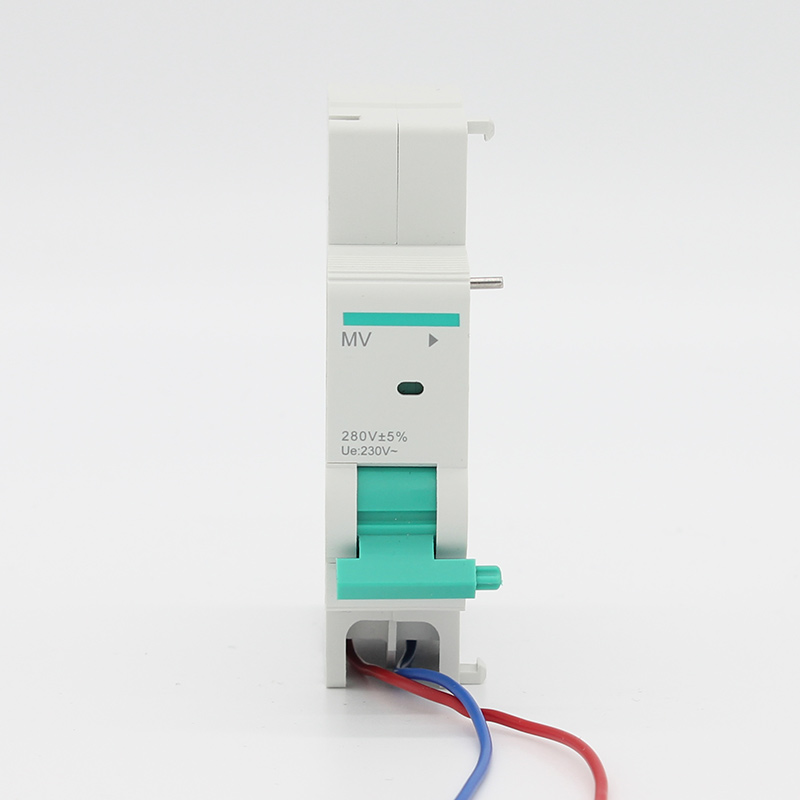

MV overvoltage
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the TGB1N series circuit breakers, which achieve remote trip control and on/off status indication of the line
When the main circuit voltage is (85%~110%) Ue, the release should be able to maintain long-term operation of the circuit breaker. When the voltage of the main circuit rises to (280V+5%), the release combined with the circuit breaker should act to drive the circuit breaker to open.
Scope of use
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the TGB1N series circuit breakers, which achieve remote trip control and on/off status indication of the line
Main technical parameters
|
product name |
model |
Rated working voltage Un |
Voltage value |
|
Overvoltage release device |
MV |
230V |
Overvoltage value Uvo=280V ± 5% |
product overview
MV overvoltage release device
Action characteristics:
When the main circuit voltage is (85%~110%) Ue, the release should be able to maintain long-term operation of the circuit breaker. When the voltage of the main circuit rises to (280V+5%), the release combined with the circuit breaker should act to drive the circuit breaker to open.
|
Rated frequency |
protection grade |
rated insulation voltage |
Product width |
Ambient Temperature |
storage temperature |
|
50/60Hz |
IP20 |
500V |
18mm |
-35℃~+70℃ |
-35℃~+70℃ |
