DZ47 miniature circuit breaker accessories

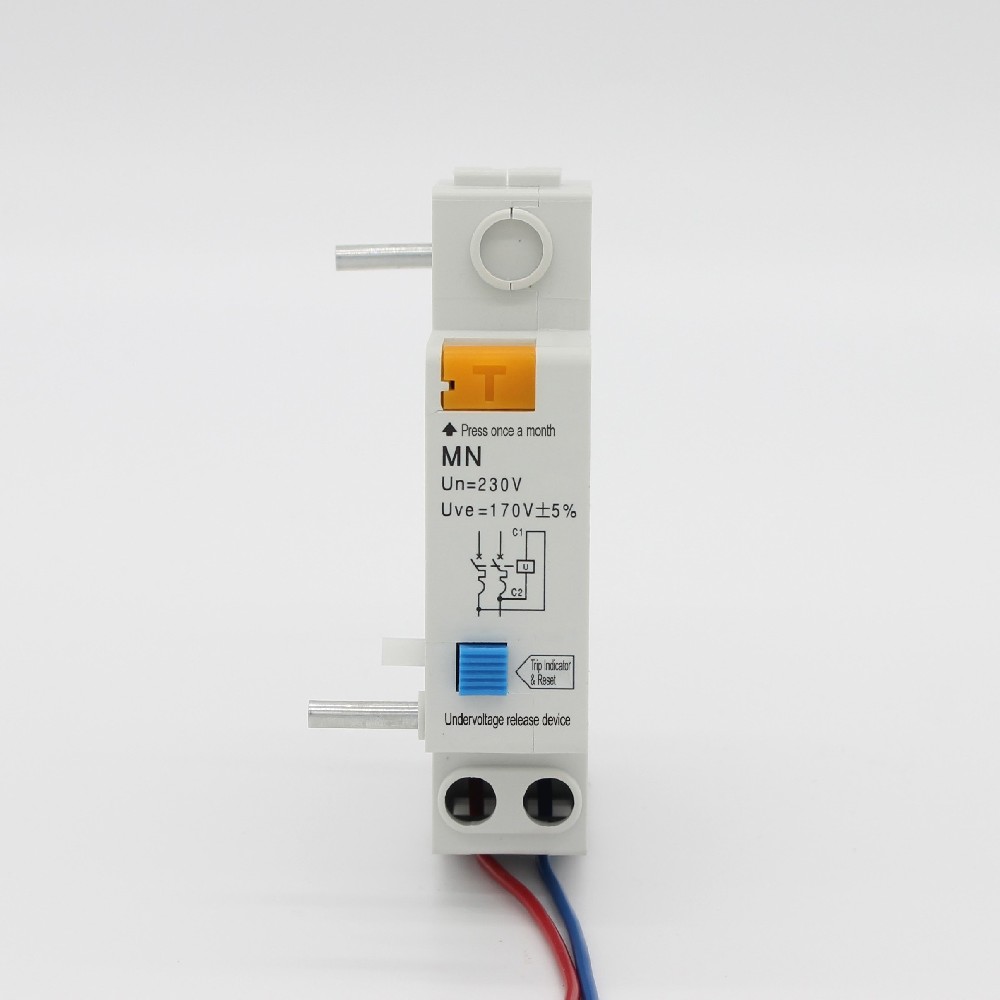

MN undervoltage
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for DZ47-60 (C45), NB7, DZ158-125 (NC) and other series of circuit breakers
When the main circuit voltage drops to (170V ± 5%), the product will activate and drive the circuit breaker to open; When the applied voltage is greater than 85% Ue, the product should be able to close. The applied voltage value should not exceed 110% Ue, and the undervoltage protection interval is: (35%~70%)Ue
Scope application
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for DZ47-60 (C45), NB7, DZ158-125 (NC) and other series of circuit breakers
Main technical parameters
| product name | model | Rated working voltage Un | Voltage value |
| undervoltage release | MN | 230V | Undervoltage value Uoe=170V ± 5% |
product overview
MN undervoltage release device
Action characteristics:
When the main circuit voltage drops to (170V ± 5%), the product will activate and drive the circuit breaker to open; When the applied voltage is greater than 85% Ue, the product should be able to close. The applied voltage value should not exceed 110% Ue, and the undervoltage protection interval is: (35%~70%)Ue
| Rated frequency | protection grade | rated insulation voltage | Product width | Ambient Temperature | storage temperature |
| 50/60Hz | IP20 | 500V | 18mm | -35℃~+70℃ | -35℃~+70℃ |
