Beiyuan BB1-63 miniature circuit breaker accessories

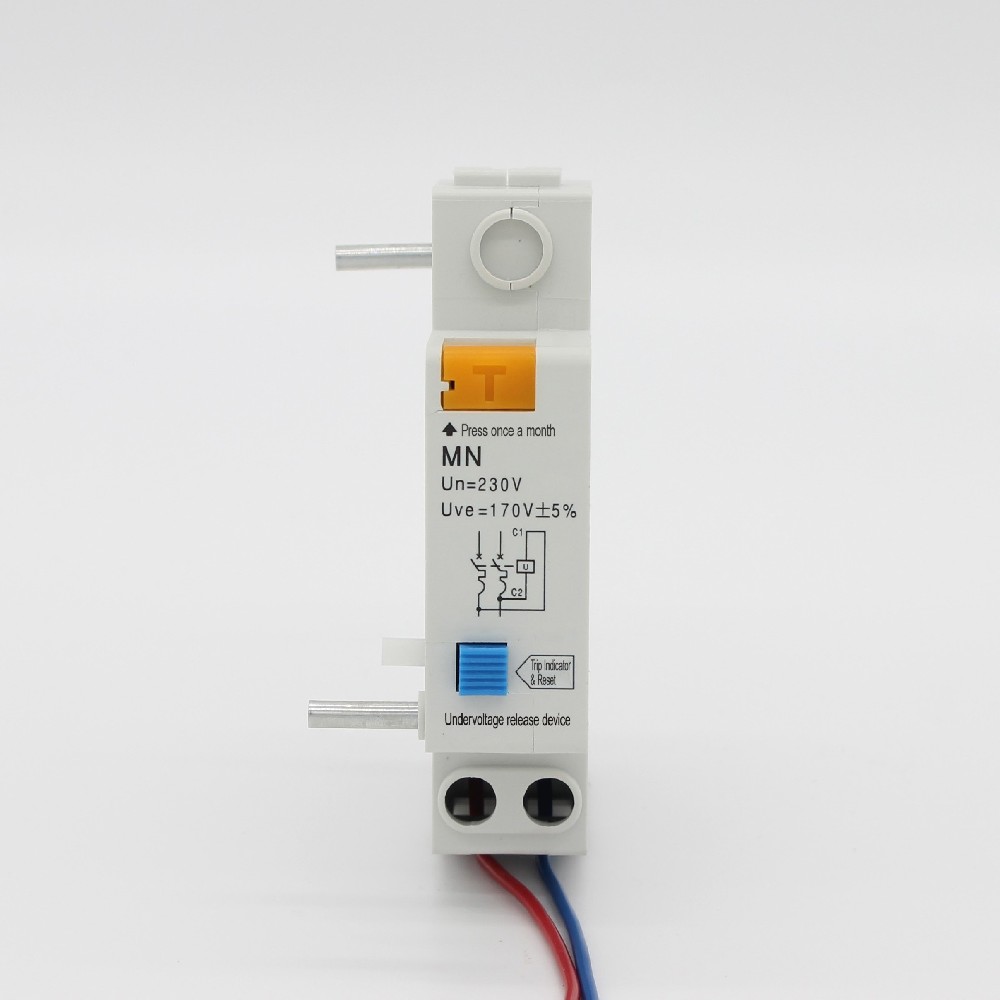

MN undervoltage
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the Beiyuan BB1 series circuit breakers, which achieve functions such as line working status indication and trip alarm
When the main circuit voltage drops to (170V ± 5%), the product will activate and drive the circuit breaker to open; When the applied voltage is greater than 85% Ue, the product should be able to close. The applied voltage value should not exceed 110% Ue, and the undervoltage protection interval is: (35%~70%)Ue
Scope application
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the Beiyuan BB1 series circuit breakers, which achieve functions such as line working status indication and trip alarm
Main technical parameters
| product name | model | Rated working voltage Un | Voltage value |
| undervoltage release | MN | 230V | Undervoltage value Uoe=170V ± 5% |
product overview
MN undervoltage release device
Action characteristics:
When the main circuit voltage drops to (170V ± 5%), the product will activate and drive the circuit breaker to open; When the applied voltage is greater than 85% Ue, the product should be able to close. The applied voltage value should not exceed 110% Ue, and the undervoltage protection interval is: (35%~70%)Ue
| Rated frequency | protection grade | rated insulation voltage | Product width | Ambient Temperature | storage temperature |
| 50/60Hz | IP20 | 500V | 18mm | -35℃~+70℃ | -35℃~+70℃ |
