Delixi DZ47S miniature circuit breaker accessories

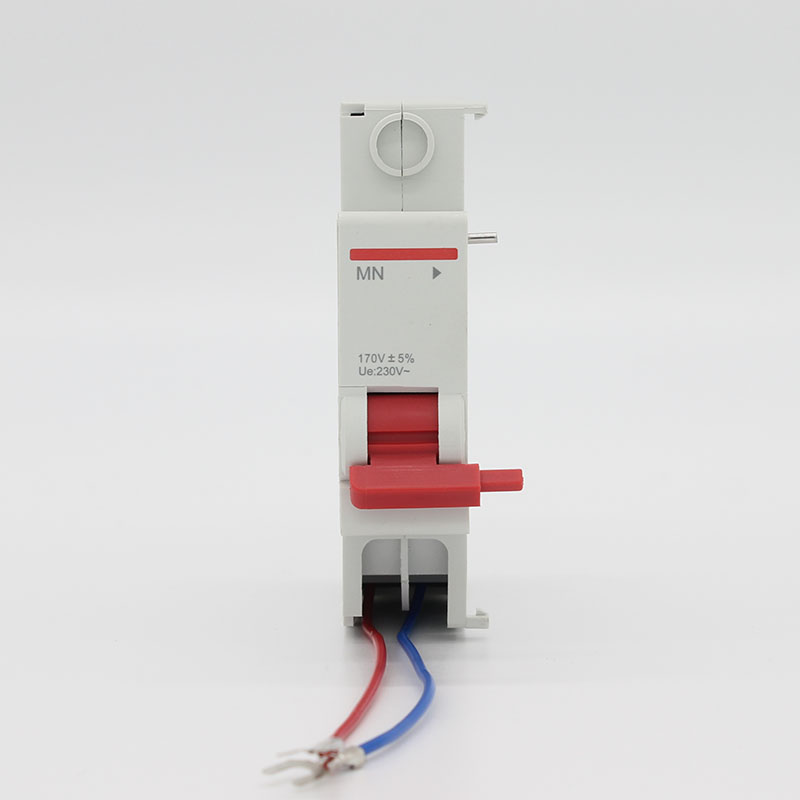

MN undervoltage
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the DZ47s series circuit breakers, which achieve remote trip control and on/off status indication of the line
When the main circuit voltage drops to (170V ± 5%), the product activates and drives the circuit breaker to open; When the applied voltage is greater than 85% Ue, the product should be able to close. The applied voltage value should not exceed 110% Ue, and the undervoltage protection interval is: (35%~70%)Ue
Scope of use
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the DZ47s series circuit breakers, which achieve remote trip control and on/off status indication of the line
Main technical parameters
| product name | model | Rated working voltage Un | Voltage value |
| undervoltage release | MN | 230V | Undervoltage value Uoe=170V ± 5% |
product overview
MN undervoltage release device
Action characteristics:
When the main circuit voltage drops to (170V ± 5%), the product activates and drives the circuit breaker to open; When the applied voltage is greater than 85% Ue, the product should be able to close. The applied voltage value should not exceed 110% Ue, and the undervoltage protection interval is: (35%~70%)Ue
| Rated frequency | protection grade | rated insulation voltage | Product width | Ambient Temperature | storage temperature |
| 50/60Hz | IP20 | 500V | 18mm | -35℃~+70℃ | -35℃~+70℃ |
