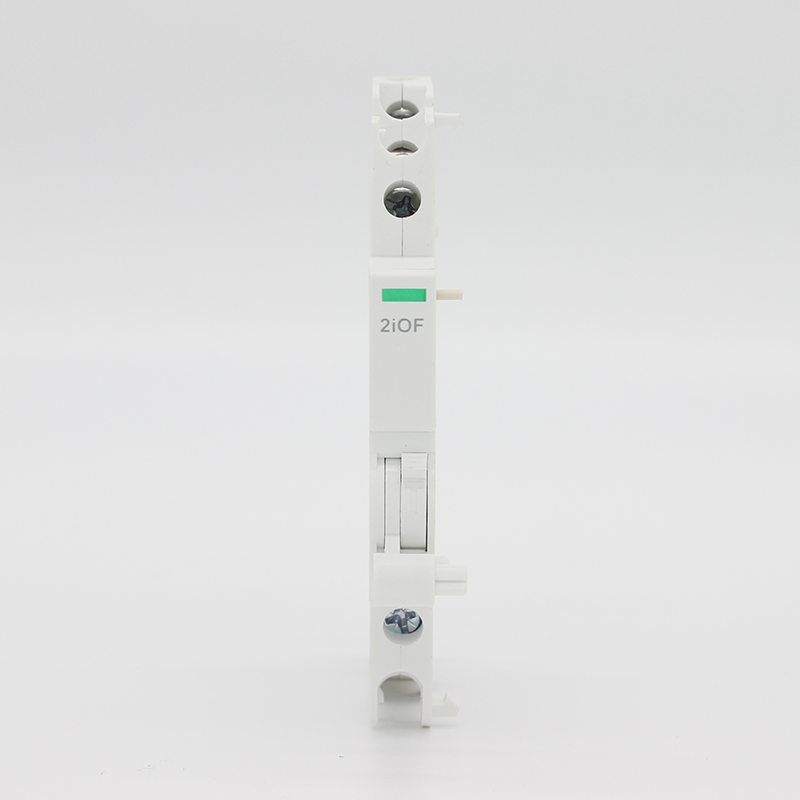

Schneider iC65 mini circuit breaker accessories
2iOF dual assistance
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the iC65 series circuit breakers, which achieve remote trip control and on/off status indication of the line
When the auxiliary contact is opened, terminals 11 and 12 are connected; When the auxiliary contact is closed, terminals 11 and 14 are connected
Scope of use
The accessories of this series of circuit breakers are auxiliary functional components specially designed by our company for the iC65 series circuit breakers, which achieve remote trip control and on/off status indication of the line
Main technical parameters
|
product name |
model |
Rated working voltage Un |
Voltage value |
|
Dual assistance |
2OF(2iOF) |
115/230/400V |
/ |
product overview
IOF auxiliary contact
Action characteristics:
When the auxiliary contact is opened, terminals 11 and 12 are connected; When the auxiliary contact is closed, terminals 11 and 14 are connected
|
Rated frequency |
protection grade |
rated insulation voltage |
Product width |
Ambient Temperature |
storage temperature |
|
50/60Hz |
IP20 |
500V |
9mm |
-35℃~+70℃ |
-35℃~+70℃ |
